Digital Load Cell Converter (DCell)

Digital Load Cell Converter (DCell)

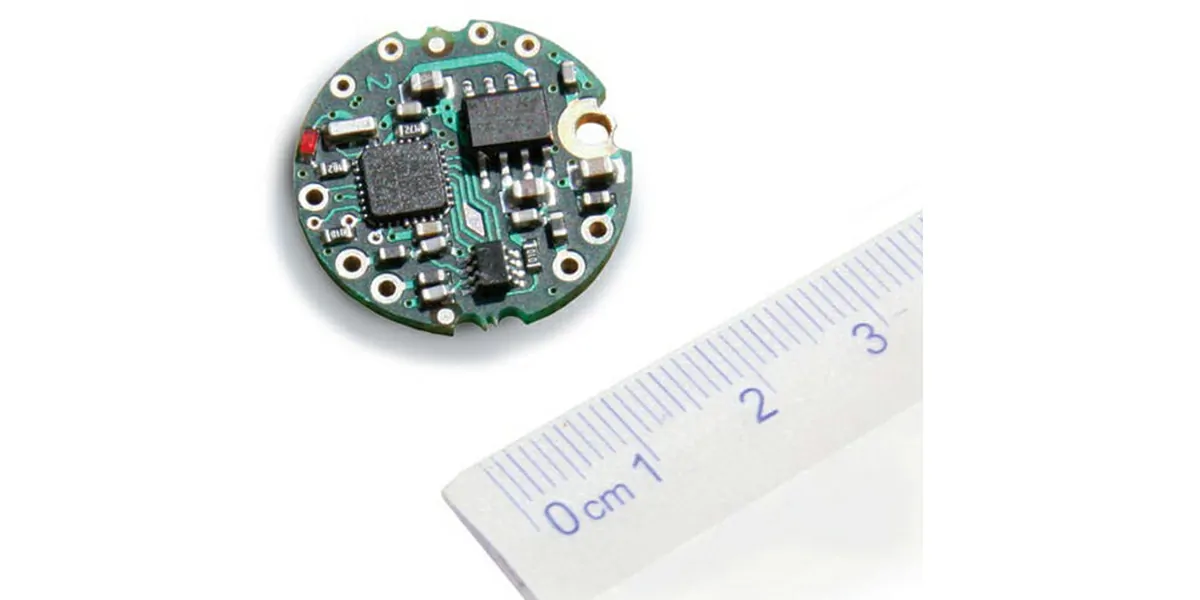

• Very high performance embedded digital load cell converter or strain gauge digitizer module signal converter supplied in a miniature format designed specifically to be incorporated directly into strain gauge sensors such as load cells, pressure transducers and torque sensors.
• The DCell offers high speed and high precision digitizing capabilities, along with linearization and temperature compensation.
• This high performance digital load cell converter embeds directly into load cells, pressure transducers and/or torque sensors
• The DCell output formats options include the RS485, ASCII, Modbus, MantraCAN (J1939). All are 4 wire bus and power formats offering connection of up to 32 sensors on just 4 wires.

• Features
  • Strain gauge to RS485 or CAN digital load cell converter
  • Low profile, small 20 mm diameter for mounting inside sensor
  • Auto calibration or direct entry of mV/V with linearisation
  • Ultra high performance, resolution of 1 part in 200,000 (18bit)
  • Error reporting including strain gauge fault conditions
  • Programmable dynamic filter
  • A miniature digital temperature sensor module for wiring to DCell/DSC temperature sensor pcb board is also available (shown on thumbnail image on left)
