Displacement Sensors

Displacement Sensors

Precision Linear Measurement for Structural, Industrial & Test Applications
Proact IMS provides high-performance displacement sensors for accurate measurement of linear movement, deflection, expansion, and position tracking in mechanical systems and structures. Our sensors are built for repeatable, high-resolution output and are compatible with DAQ systems, PLCs, and automated control systems.
Available in technologies like LVDT, digital encoder, laser displacement, and potentiometric transducers, our displacement sensors are rugged, field-proven, and ready for integration into dynamic testing, process control, and structural health monitoring solutions.

Types of Displacement Sensors Offered

LVDT (Linear Variable Differential Transformer) Sensors

• Contact type measurement
• Ideal for industrial and laboratory precision measurement
• Operates in harsh environments with high repeatability

Laser Displacement Sensors

• High-speed, non-contact sensing
• Sub-micron resolution for fine positioning and surface profiling

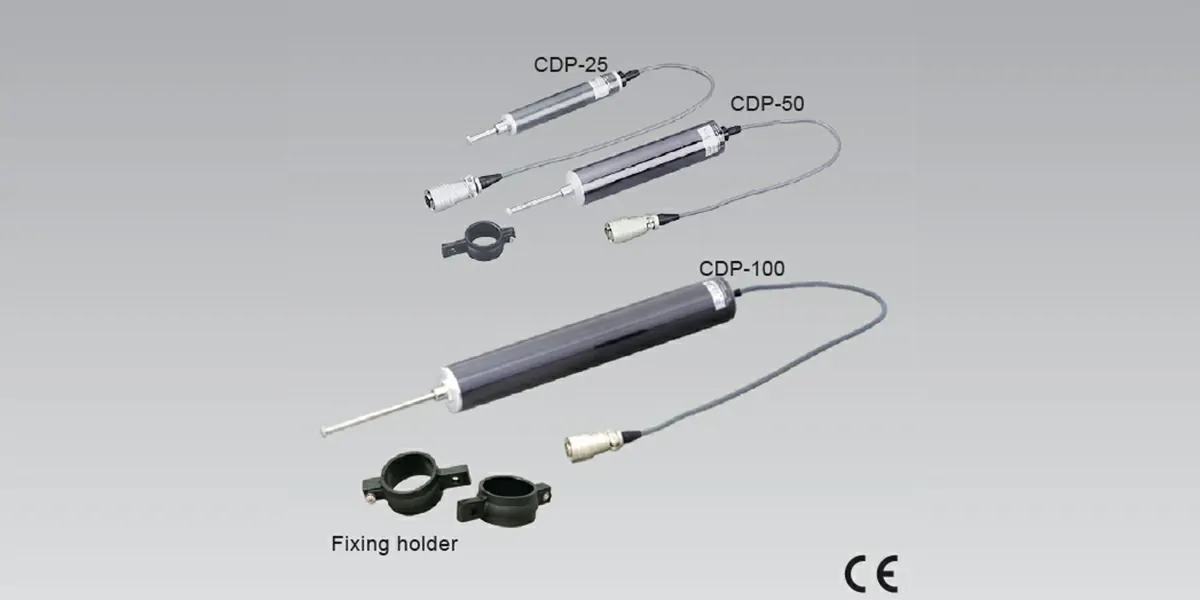

Spring return type Transducers

• Cost-effective Wheatstone bridge based sensors
• Ideal for machine control, servo positioning, and valve actuation

Dial gauge integrated Displacement Sensors

• Displacement can be checked by viewing the pointer while the output can be used to control a recorder or a machine
• Suitable for robotics, CNC machines, and smart actuators

• Technical Specifications
  • Measurement ranges: ±1 mm to 300 mm (standard); extended ranges on request
  • Linearity: up to ±0.1% FS
  • Output: analog (0–10V, 4–20 mA) or digital (RS-485, Modbus, CAN)
  • Environmental ratings: IP65/IP67 for industrial and outdoor use
  • Mounting: Spring-loaded, guided rod, flange, and custom mounts available
• Technical Specifications
  • Measurement ranges: ±1 mm to 300 mm (standard); extended ranges on request
  • Linearity: up to ±0.1% FS
  • Output: analog (0–10V, 4–20 mA) or digital (RS-485, Modbus, CAN)
  • Environmental ratings: IP65/IP67 for industrial and outdoor use
  • Mounting: Spring-loaded, guided rod, flange, and custom mounts available
• Applications

  Civil & Structural Health Monitoring

  • Crack widening, joint displacement, beam deflection, tunnel lining convergence

  Industrial Machinery & Process Control

  • Industrial Machinery & Process Control

  Automotive & Aerospace Testing

  • Component fatigue, suspension stroke, impact deformation studies

  Research & Development

  • Real-time measurement of mechanical strain and material elongation
  • Integration with servo-hydraulic test machines

  Packaging & Robotics

  • Position feedback in pick-and-place arms, sliding mechanisms, and gantries
• System Integration
  • Plug-and-play compatibility with NI DAQ, LabVIEW, PLC, and Proact DAQ software
  • Easy pairing with load cells, strain gauges, accelerometers, and temperature sensors
  • Wireless telemetry options for remote or mobile setups

Why Choose Proact IMS Displacement Sensors?

• Precision-engineered for high-reliability applications
• Available in standard and custom configurations
• Support for harsh environments: vibration, temperature, dust, moisture
• Field-tested in infrastructure, automotive, and industrial automation projects
• Full installation, calibration, and support services included
