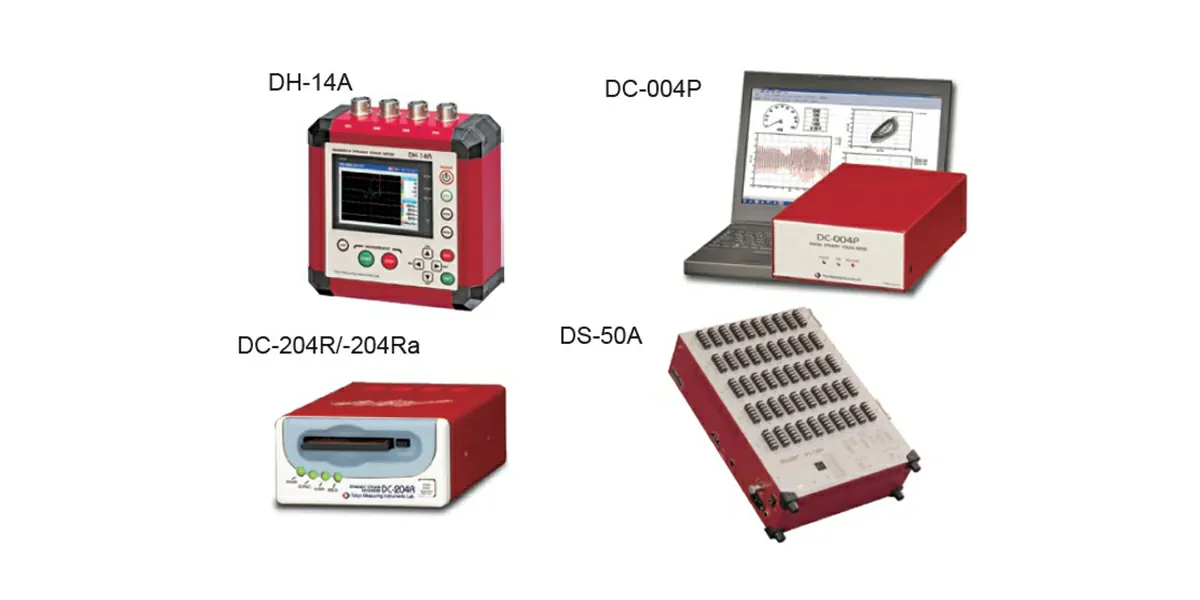

Multichannel Data Acquisition Systems (DAQ)
High-Performance DAQ for Multi-sensor Precision Monitoring
Proact IMS offers advanced Multichannel Data Acquisition Systems engineered to capture, analyze, and visualize complex physical parameters with high accuracy and resolution. Our systems support strain, temperature, vibration, pressure, load, and displacement measurements across multiple synchronized input channels — ideal for both real-time and long-duration testing applications.
Whether you're running structural load tests, vibration monitoring, thermal profiling, or multi-sensor R&D experiments, our multichannel DAQ solutions provide unparalleled flexibility and integration capability.
Core System Features
1. Multi-Sensor Compatibility
- Accepts input from Strain Gauges, Load cells, Pressure & Displacement transducers, Accelerometers, LVDTs, Thermocouples, and more
- Supports analog, digital, and frequency-based sensors
2. High-Speed Sampling
- Real-time data acquisition up to 100 kS/s per channel
- Ideal for both static and dynamic testing conditions
3. Channel Scalability
- Scalable architecture from 4 to 1000+ synchronized channels
- Modular chassis for expandable setups
4. Data Integrity & Precision
- 16-bit ADC resolution for low-noise, high-fidelity capture
- Internal calibration and auto-zero functionality
5. Connectivity & Integration
- Interfaces with Ethernet, USB, CAN, RS485 modules
- Compatible with TML software
6. Advanced Visualization Software
- Multi-window dashboard
- Real-time graphing, FFT analysis, threshold alarms, and cloud backup
Applications of Multichannel DAQ Systems
1. Civil & Structural Engineering
- Simultaneous monitoring of strain, displacement, vibration, and temperature in large infrastructure
2. Automotive Testing
- Chassis strain + suspension load + exhaust temperature – all captured in one synchronized system
3. R&D and Laboratory Testing
- Ideal for composite testing, material fatigue analysis, and dynamic simulation labs
4. Industrial Monitoring
- Machine condition monitoring, factory line QA, and predictive maintenance
5. Bridge & Tunnel Instrumentation
- Multi-node data streaming from long-span or underground environments
Why Choose Proact IMS DAQ Systems?
- Designed for extreme field conditions (shock, temp, dust)
- Remote access capability for unmanned testing environments
- Custom firmware and I/O mapping for project-specific integration
- Battery-operated or solar-powered options for remote setups
