Settlement Sensors
Accurate Monitoring of Vertical Displacement for Geotechnical and Structural Applications
Proact IMS offers high-precision Settlement Sensors designed for monitoring ground settlement, foundation displacement, and structural movement in critical infrastructure and geotechnical projects. Our sensors provide reliable long-term data essential for assessing performance, safety, and stability of embankments, dams, buildings, tunnels, and reclamation sites.
Available in various configurations, Proact settlement sensors are built for buried installation, harsh site conditions, and automated data logging — enabling engineers to make informed decisions during and after construction.
-
Types of Settlement Sensors Offered

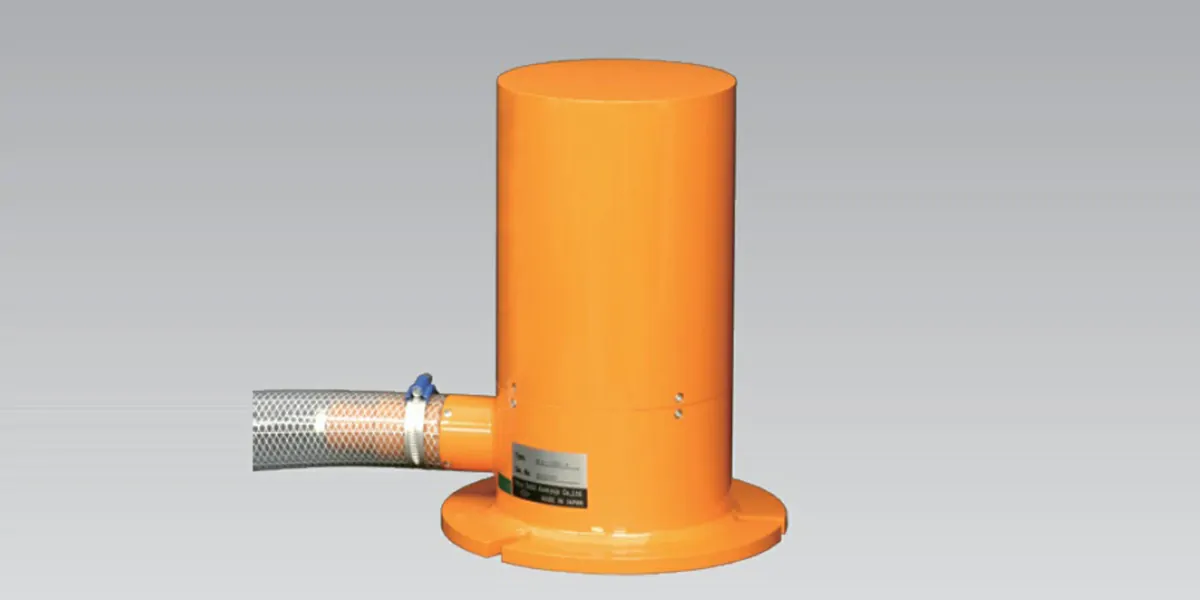

Hydraulic Settlement Cells
- Measure vertical displacement between two points through fluid pressure
- Ideal for embankments, fills, and dam monitoring
- Suitable for buried installation with surface or remote readout
Magnetic Settlement Systems
- Track settlement through magnetic rings along a guide rod in fill or soft ground
- Simple, reliable manual or probe-based measurement
- Common in roadway, railway, and embankment construction
Rod-Type Settlement Gauges
- Telescopic rod system for shallow ground or foundation settlement
- Used for foundation slab monitoring and landfill settlement checks
Digital Settlement Sensors
- Real-time monitoring via wired or wireless sensors
- Compatible with DAQ systems for automated data logging and alarm triggering
-
| Parameter |
Details |
| Measurement Range |
0–200 mm to 0–1000 mm (standard) |
| Accuracy |
±0.25% to ±0.5% full scale |
| Output (Digital Models) |
4–20 mA, RS-485, Modbus, Wireless |
| Environmental Rating |
230V AC / 24V DC |
| Operating Temperature |
-10°C to +60°C |
-
Dams & Embankments
- Monitor fill settlement and stability during and post-construction
Highways, Railways & Tunnels
- Measure subsidence along cuttings, embankments, and under road/rail alignments
Building Foundations & Slabs
- Detect differential settlement in large structures or industrial slabs
Landfills & Reclaimed Land
- Track long-term settlement for environmental compliance
Integration & System Compatibility
- Compatible with Proact DAQ systems, SCADA, and PLC platforms
- Wireless models integrate with telemetry units and cloud dashboards
- Outputs configurable for alarm triggers, reporting, and trend analysis
Why Choose Proact IMS Settlement Sensors?
- Rugged, long-lasting designs for harsh geotechnical environments
- Full range of manual and automated solutions
- Integration-ready for remote monitoring and reporting
- Trusted in infrastructure, environmental, and urban development projects
- Backed by Proact IMS with installation support, calibration, and lifecycle service
