Load Sensors

Load Sensors (Load Cells)

Accurate Force Measurement for Industrial, Structural & Testing Applications

Proact IMS provides high-precision load sensors designed to measure tensile, compressive, and shear forces across a wide range of applications — from structural health monitoring to process automation and R&D. Based on strain gauge technology, our load sensors deliver consistent, linear, and drift-free performance in both static and dynamic environments.
Available in multiple form factors and output types, our sensors are engineered for easy integration into DAQ systems, PLCs, SCADA, and cloud-based monitoring platforms

Types of Load Sensors Available

Compression Load Cells

• Measure downward forces
• Ideal for material testing machines, silo weighing, and press force monitoring

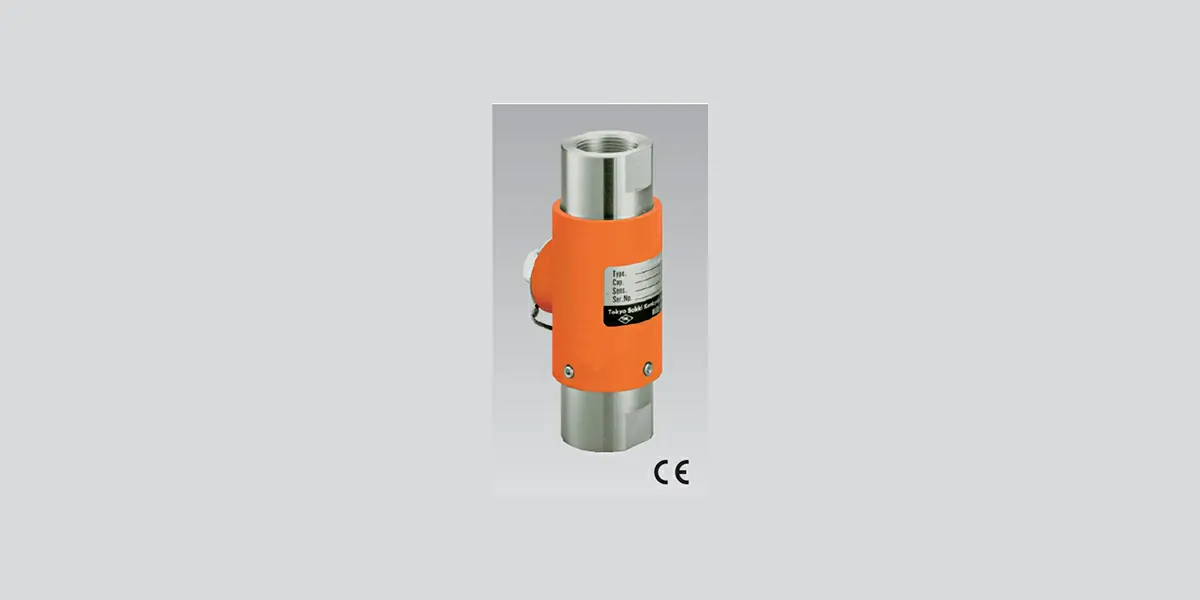

Tension Load Cells

• Measure pulling forces
• Commonly used in crane monitoring, cable tensioning, and lifting systems

S-Type Load Cells

• Measure both tension and compression
• Compact design ideal for universal testing machines, automation lines, and QA systems

Shear Beam Load Cells

• Used in platform scales and structural stress monitoring
• Suitable for uneven load distribution in industrial weighing systems

Button / Pancake Load Cells

• Low-profile force measurement in space-restricted setups
• Suitable for embedded force feedback and robotic actuation

Wireless Load Sensors

• Transmit data over long distances via Radio frequency / Bluetooth
• Ideal for remote lifting operations, offshore installations, and mobile platforms

• Technical Specifications
  • Capacity ranges: 5N to 5000kN
  • Output: mV/V, 4–20 mA, 0–10V, RS-485, Modbus RTU, CANopen
  • Material: stainless steel, aluminum, or nickel-plated alloy
  • Accuracy: up to ± 0.03% FS
  • IP rating: IP65 to IP68 (waterproof and outdoor use)
• Applications

  Structural Monitoring

  • Column load testing, bridge pier stress, foundation compression studies

  Heavy Equipment & Crane Safety

  • Overload protection in hoists, winches, and hydraulic systems

  Process Automation & Industrial QA

  • Inline force verification, robotic arm force feedback, bolt tension monitoring

  R&D and Material Testing

  • Compression and tensile testing in universal testing machines
  • Component durability and fatigue testing

  Weighing Systems

  • Platform scales, tank weighing, and batch control systems

Integration & Support

• Works with Wheatstone bridge DAQ, NI LabVIEW, PLC/SCADA, and Proact DAQ software
• Pre-calibrated with load curves and traceable certificates
• Accessories: mounting kits, cables, amplifiers, digital indicators, and wireless gateways
