Pressure Cells
Reliable Earth Pressure Cell and Pore Pressure Gauge for Geotechnical & Structural Projects
Proact IMS offers robust and highly accurate Pressure Cells designed for the measurement of soil pressure, rock stress, and contact pressure in geotechnical and structural monitoring applications. Our pressure cells are built to endure buried environments, high-load zones, and dynamic loading conditions, providing real-time data essential for assessing ground stability, foundation performance, and retaining structures.
With a range that includes earth pressure cells, rock stress cells, and contact pressure sensors, we deliver site-proven solutions for critical infrastructure monitoring.
-
Types of Pressure Cells We Offer
Earth Pressure Cells / Soil Pressure Gauge
- Measure total pressure in soil or fill
- Used behind retaining walls, bridge abutments, and embankments
- Flat diaphragm or vibrating wire models available
Contact Pressure Cells
- Designed for use between concrete interfaces or rock-concrete boundaries
- Captures pressure at contact surfaces like dam footings or tunnel linings

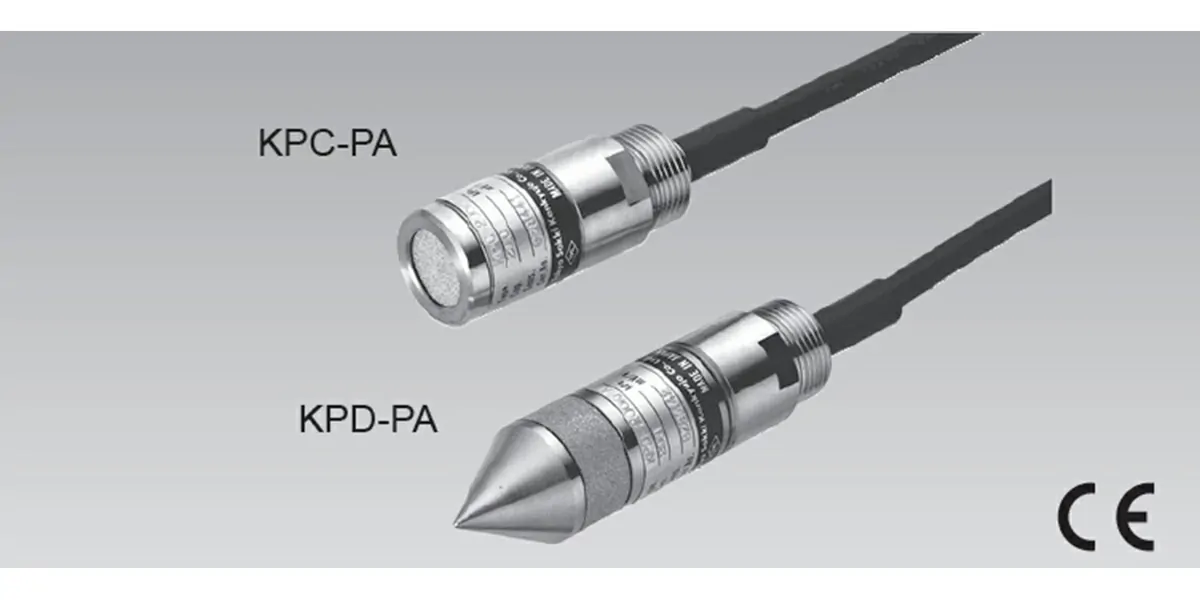

Pore Pressure gauge
- Measure pore water pressure in soil, sheet piles, piles and boreholes
- Dual structure not affected by the outer lateral pressure
- Made of all stainless steel with excellent corrosion resistance
Ultra-compact Pore Pressure Gauge
- Miniature pore pressure gauge for measurement of pore water pressure in soil
- Dia of just 8.7mm and length of 9.5mm
- Designed for use in model testing
- Dual structure not affected by the outer lateral pressure
- Made of all stainless steel with excellent corrosion resistance
High-sensitivity compact Pore Pressure Transducer
- Miniature pore pressure gauge for measurement of pore water pressure in soil
- Dia of just 8mm and length of 15mm
- High sensitivity of approx. 5mV/V (10,000 microstrains) at full scale
- Dual structure not affected by the outer lateral pressure
- Made of all stainless steel with excellent corrosion resistance
-
Technical Specifications
Parameter Range Measuring Capacity 50 kPa to 100 MPa Accuracy ±0.5% to ±1.0% F.S. Output Signal mV/V Operating Temp -20°C to +80°C Material Stainless steel / High-strength alloys Mounting Panel, benchtop, or enclosure -
Applications
Dams and Embankments
- Monitor vertical and lateral soil pressure during and after construction
- Detect abnormal stress buildup to prevent failure
Tunneling & Underground Excavation
- Rock stress mapping around tunnel linings
- Soil pressure evaluation behind retaining walls and shotcrete
Bridges and Retaining Structures
- Assess backfill pressure on abutments
- Evaluate stress transfer at expansion joints and supports
Mining and Geomechanics
- In-situ rock pressure monitoring during excavation or shaft development
- Long-term underground stress profiling
Building Foundations
- Measure base slab or mat foundation pressures
- Ensure uniform load distribution and detect differential settlement
System Integration
- Fully compatible with Proact DAQ Systems (TMR300, DS50A)
- Interface with data loggers, wireless telemetry, and real-time cloud dashboards
- Supports alarm triggers, automated data uploads, and long-term trend analysis
Why Choose Proact IMS Pressure Cells?
- Engineered for harsh geotechnical conditions
- Long-term reliability and minimal signal drift
- Available in custom shapes, sizes, and pressure ranges
- Full lifecycle support — from sensor placement to data interpretation
- Trusted by civil engineering consultants, infrastructure developers, and EPCs
