Multi-Channel Data Acquisition Systems
DS-50A Dynamic DAQ System
- Up to 1000 measurement channels (20 units × 50 channels)
- High-speed sampling at 1 kHz for 50 channels
- Supports Strain gauges, Transducers, Thermocouples, and Voltage inputs
- Ideal for wide-area measurements with Cable extension up to 100m
- PC-integrated operation via measurement software
TMR-300 Modular DAQ System
- Lightweight, portable design for space-constrained installations
- Suitable for Bridges, Aircraft, Vehicles, Ships, and Rotating machinery
- Handles Strain gauges, Voltage, Thermocouples, and more
- Connects to PCs via USB or LAN, controlling up to 80 measurement points and expandable up to 320 Channels

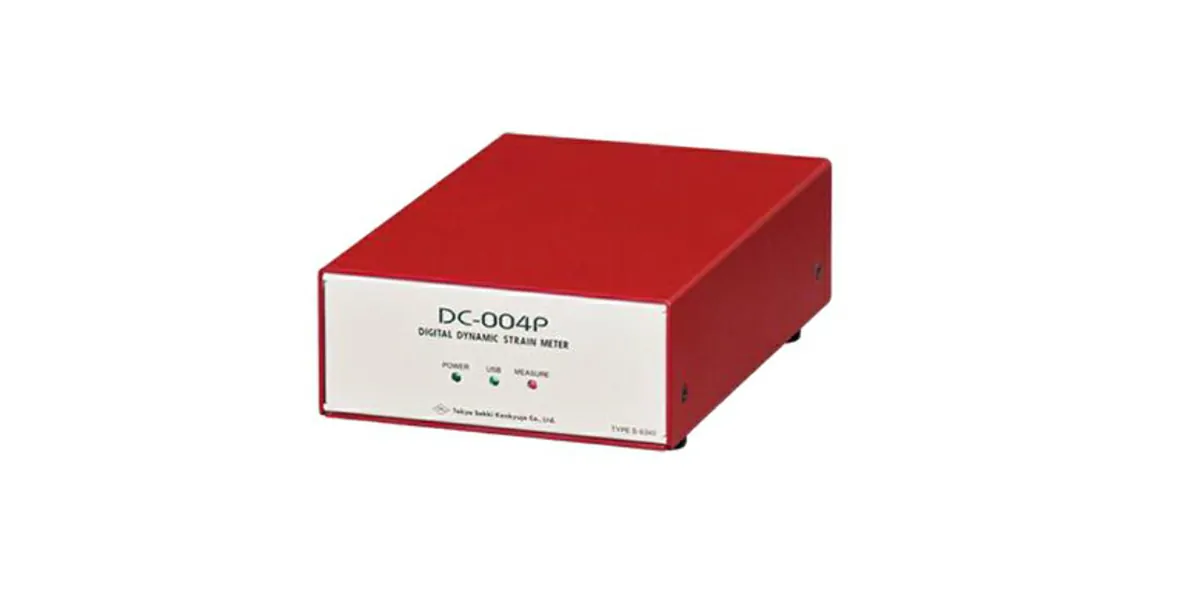

DC-004P PC-Controlled DAQ System
- Affordable, compact system for 2 or 4-channel high-frequency (12.5 kHz) measurement
- Connects via USB with continuous Data Acquisition
- Supports Strain gauges (120/350 ohm), Transducers, Thermocouples
- Excellent for Material Testing and Lab applications

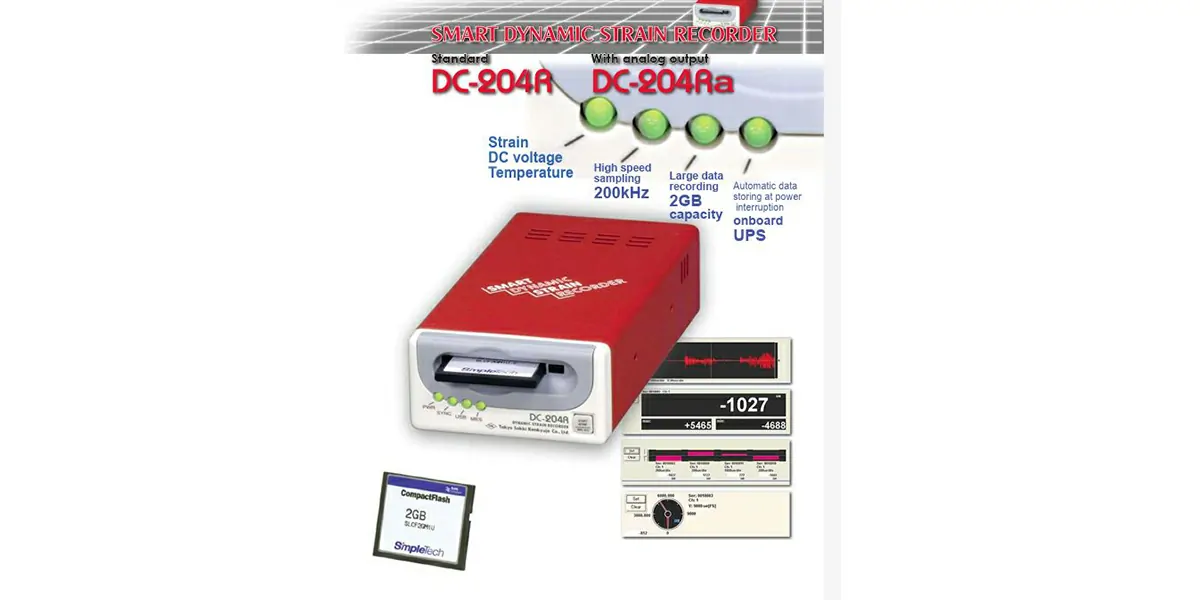

DC-204R Smart Strain Recorder
- 4-channel dynamic Strain Recorder with real-time waveform output
- Enhanced frequency response up to 10 kHz, sampling rate fastest at 200 kHz
- Ideal for high-speed Vehicles and dynamic Strain monitoring
- Data stored on Compact Flash card (up to 2GB)

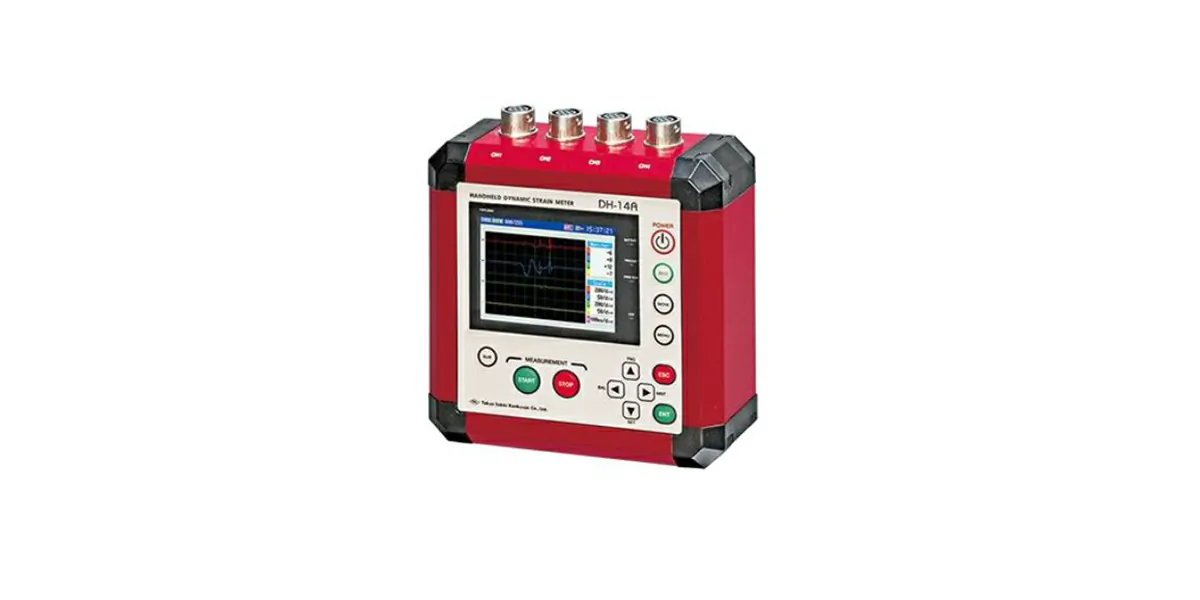

DH-14A Handheld Strain-meter
- Battery-powered 4-channel dynamic Strain-meter
- Portable, lightweight — ideal for fieldwork and Sensor verification
- Up to 6 hours operation on AA batteries
