DC-204R Smart Strain Recorder

DC-204R Smart Strain Recorder

Compact, High-Accuracy Recorder for Strain Gauge Measurement & Field Testing

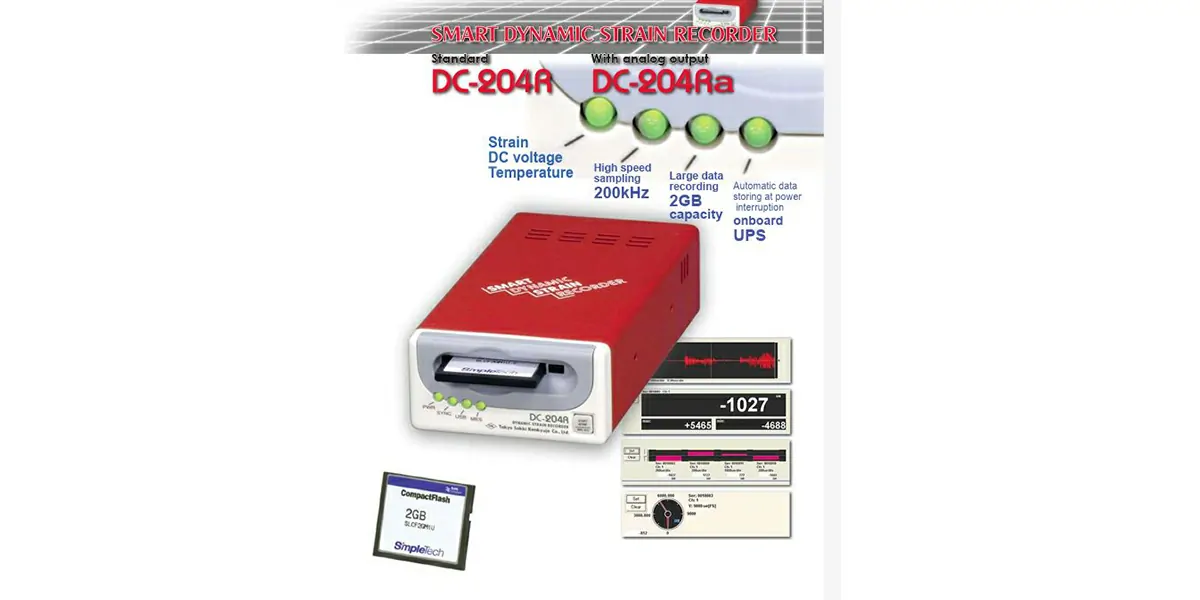

The DC-204R Smart Strain Recorder from Proact IMS is a versatile, compact instrument designed for precise strain measurement in field and lab environments. Ideal for civil engineering structures, industrial equipment, and R&D testing, this recorder offers high-resolution logging, easy setup, and reliable data storage, making it a perfect choice for both short-term diagnostics and long-term monitoring.

Built to connect directly with strain gauges, strain-gauge-type transducers, and temperature sensors, the DC-204R simplifies data collection for engineers working on-site or in controlled environments.

• Key Features
  • 4-Channel Measurement – Supports quarter, half, and full bridge configurations
  • High Accuracy – 24-bit A/D conversion with excellent noise immunity
  • Wide Measurement Range – ±32,000 microstrain (με)
  • Compact & Portable – Lightweight housing with battery operation for remote use
  • Onboard Memory – Large internal storage capable of logging thousands of data points
  • Simple Operation – Intuitive interface with keypad control and backlit display
  • USB Output – Fast data export to PC for analysis and reporting
  • Optional Wireless Module – For remote monitoring and data retrieval
• Technical Specifications

  Specification	Details
  Channels	4 independent strain channels
  Sampling Speed	Up to 10 samples/sec/channel
  Input Bridge Configurations	Input Bridge Configurations
  Data Storage	Internal memory (e.g. SD card or internal flash)
  Communication	USB, optional wireless module
  Power Supply	Battery-powered or external DC
  Dimensions / Weight	Compact handheld form factor
  Measurement Mode	Static or low-speed dynamic
  Strain Measurement Range	±32,000 με
  Operating Temperature	Operating Temperature

• Applications

  Civil & Structural Monitoring

  • On-site strain checks in bridges, buildings, tunnels, and dams
  • Temporary load test verification on girders, columns, beams

  Industrial Machinery

  • Stress checks on rotating equipment, press components, and weld joints

  R&D & Material Testing

  • Material deformation studies under load
  • Component fatigue and life-cycle analysis

  Transport & Logistics

  • Strain monitoring on vehicle frames during field trials


Integration & Compatibility

• Compatible with standard strain gauges, load cells, pressure transducers, and LVDTs
• Exports data in formats suitable for Excel, MATLAB, LabVIEW, or Proact DAQ software
• Can be combined with temperature sensors for thermal compensation

 Why Choose DC-204R from Proact IMS?

• Rugged, field-ready design with intuitive operation
• High-resolution data for precision strain monitoring
• Flexible power and data connectivity options
• Suitable for both standalone logging and system integration
• Backed by Proact IMS technical support, calibration, and documentation
