Load Cell DIN Rail Signal Amplifier (LCD20)

Load Cell DIN Rail Signal Amplifier (LCD20)

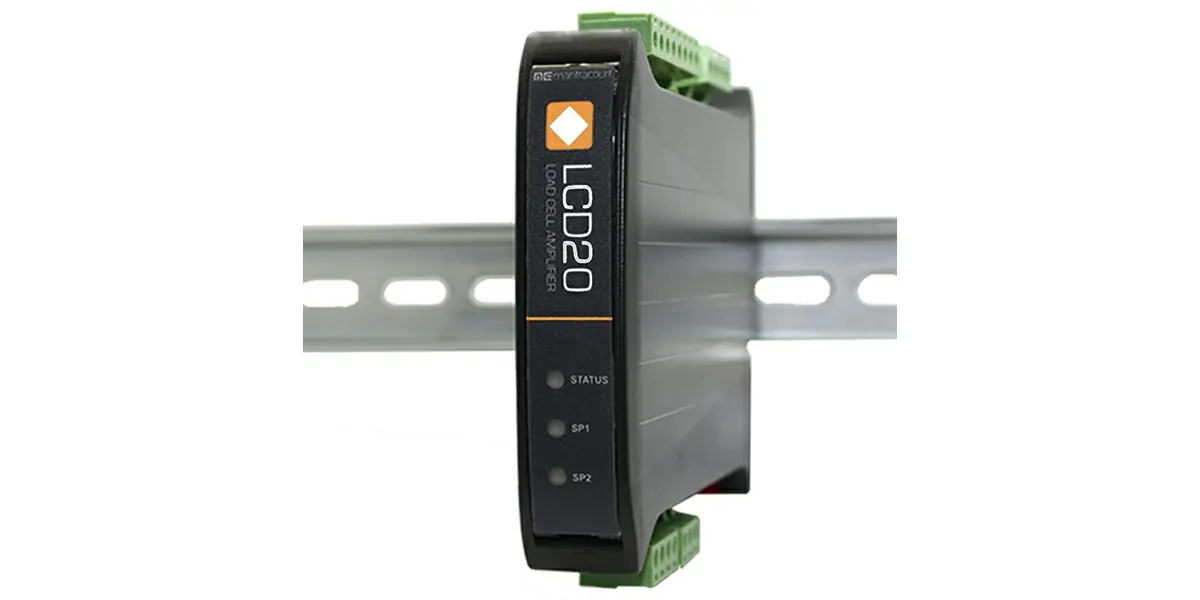

Mantracourt intelligent strain gauge bridge amplifier (LCD20) is a compact, stackable microprocessor based unit specifically designed to control and monitor process applications. Flexible connection to most load cells, pressure or strain gauges over a wide range of sensitivities.The load cell amplifier (LCD20) provides isolated current 4-20mA and voltage 0-10V analogue outputs and two digital inputs. Two set point relays can be configured to set thresholds such as net, gross, peak and valley. Powered from a wide ranging DC supply, the DIN rail amplifier is supplied with 2 part screw connectors for ease of installation.
Suitable for strain gauges and other ratio-metric sensors and will support 6 wire input to compensate for barrier and cable losses. Factory calibrated to mV/V and supporting 10 point user calibration to desired engineering units. Configuration options via handheld programmer or PC Toolkit software.

• Features:
  • Intelligent, compact, stackable microprocessor based load cell amplifier for smarter automation and process control
  • Fully isolated standard analogue outputs 4-20mA and 0-10V
  • Full digital setup & easy programming via USB connection to a PC using intuitive toolkit software.
  • Increased functionality with 2 single pole relays & digital inputs
  • 10 point linearization, providing superior accuracy
  • 6 wire load cell connection to compensate for barrier and cable losses
  • Lockable features prevents loss of device settings through user misuse
  • Configuration can be save and restored for security of setup
