Strain Gauge to USB Converter (DSCUSB)

Strain Gauge to USB Converter (DSCUSB)

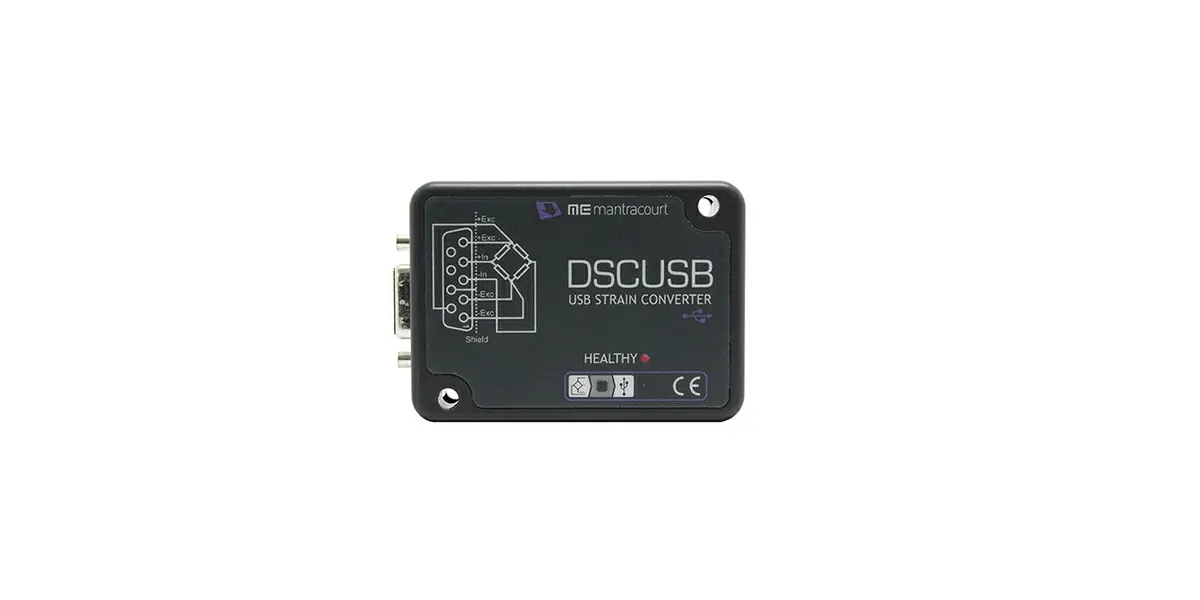

• The DSCUSB strain gauge to USB converter is a compact, high performance strain gauge digital signal conditioner with USB connectivity aimed at applications which require high-accuracy measurement repeatability.
• A rugged ABS IP50 enclosure makes this USB load cell converter suitable for all environments.
• Simply by plugging the DSCUSB into a PC, data can be extracted from most strain gauge bridge input sensors and acquired by software which allows data manipulation removing the need for amplifiers, filters & multimeters. No additional power supply is required as the power is drawn from the USB bus.
• The strain gauge to USB converter (DSCUSB) is ideal for one to one interface, however you can connect multiple DSCUSB's to the same PC/Laptop via a suitable hub.
• Ideal for all strain gauge bridge based sensors including load, weight, force, torque, pressure & displacement, the device simply plugs into your PC where data can be acquired and manipulated by accompanying software.

• Features
  • High stability providing superior performance
  • USB strain gauge interface – device appears as a virtual com port
  • Simple & easy to connect to your strain gauge sensor
  • Multiple devices can be used with one PC
  • Supplied with 1.5m USB to Micro USB lead
  • Free DSCUSB strain gauge to USB converter toolkit software
  • Compatible with most load cells and sensors
  • Non-expert maintenance
  • Windows driver DLL’s available
  • OEM pcb versions available (shown on thumbnail image on left)
