DH-14A Handheld Strain-meter

Handheld Dynamic Strainmeter DH-14A – Multi-Channel Dynamic Strain Data Acquisition System

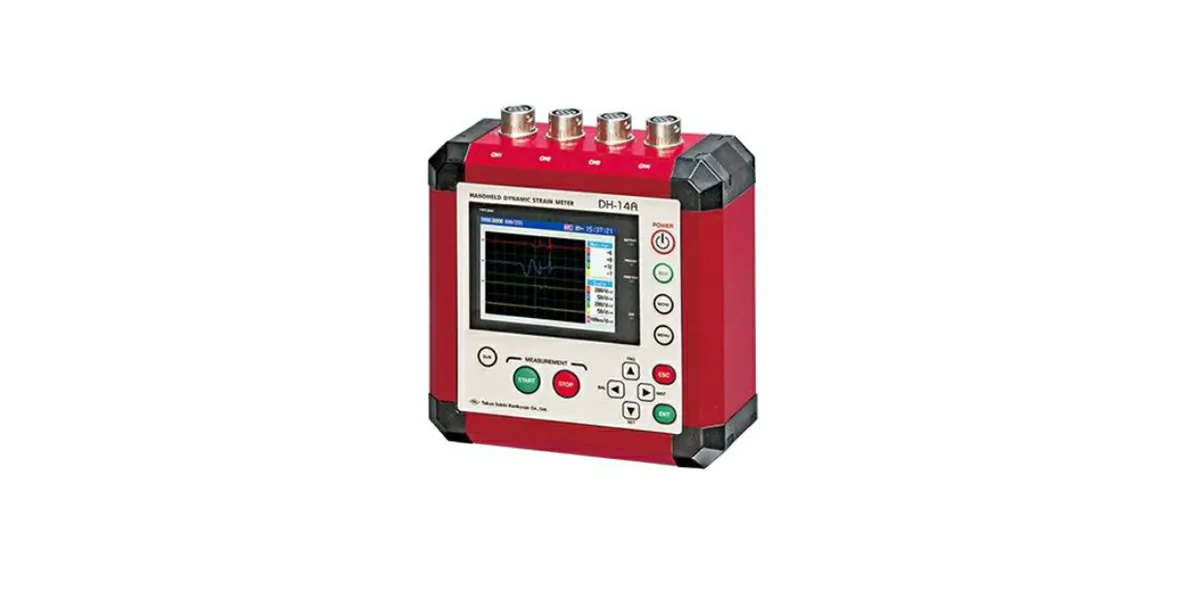

The DH-14A is a handheld and battery-operated dynamic strainmeter having 4 measurement channels. Dynamic strain is easily measured while monitoring numerical values and wave forms. Trigger measurement mode and free-run measurement mode are available. The DH-14A is well suited not only for measurement in fieldwork or on moving object, but also for checking sensors and input noise as a checker.

Developed using strain gauge bridge-based technology, this system allows direct input from quarter, half, and full-bridge configurations, enabling flexible connection of various sensor types such as strain gauges, LVDTs, load cells, and thermocouples.

• Key Features
  • Simultaneous sampling of 4 channels
  • Measured data indicated by waveform
  • ECO mode (power saving mode) equipped
  • Powered by 4 AA alkaline batteries
  • Measured data conforms to DADiSP format
  • TEDS compatible
• Applications

   Structural Health Monitoring (SHM)

  • Bridges, tunnels, dams, and towers for strain, crack growth, and load behavior tracking

  Automotive Testing

  • Fatigue, impact, and vibration analysis on chassis, suspension, powertrain components

  Aerospace R&D

  • Wing load distribution, fuselage stress, modal testing during vibration and acceleration

   Civil Engineering

  • Load response in buildings and infrastructure under static and dynamic conditions
• Technical Specifications

  Parameter	Specification
  Channels per Unit	04 channels
  Sensor Input	Strain Gauge, DC voltage, Thermocouple
  Sampling Speed	Up to 1 kHz/channel
  Resolution	1 µε for strain / 1 mV for voltage
  Excitation	Built-in bridge circuit, 120/350Ω
  Temperature Sensor Support	Thermocouple Type T, J, K
  Communication	Ethernet (LAN 100BASE-TX)
  Power Supply	4 AA-size(LR6) alkaline batteries AC adaptor (optional)
  Weight	Approx. 1 kg

System Integration

• Compatible with TML DAQ software suite
• Ideal for strain rosette analysis, load-deflection mapping, and sensor array integration
• Easily pairs with load sensors, LVDTs, temperature sensors, and more

 Why Choose DH-14A from Proact IMS?

• Trusted in national infrastructure projects, crash testing labs, and defense R&D
• Plug-and-play setup with pre-calibrated strain inputs
• Excellent for long-term monitoring or high-speed transient capture
• Rugged design suitable for field or lab environments
• Backed by Proact technical team for system setup, training, and post-deployment support
