DS-50A Dynamic DAQ System

High-Speed, High-Accuracy Strain Measurement for Structural & Dynamic Testing

The DS-50A is a high-performance multichannel DAQ system designed for dynamic strain measurement across a range of industrial and research applications. Built for precision, speed, and scalability, the DS-50A is ideal for structural monitoring, automotive fatigue testing, vibration analysis, and infrastructure health diagnostics.

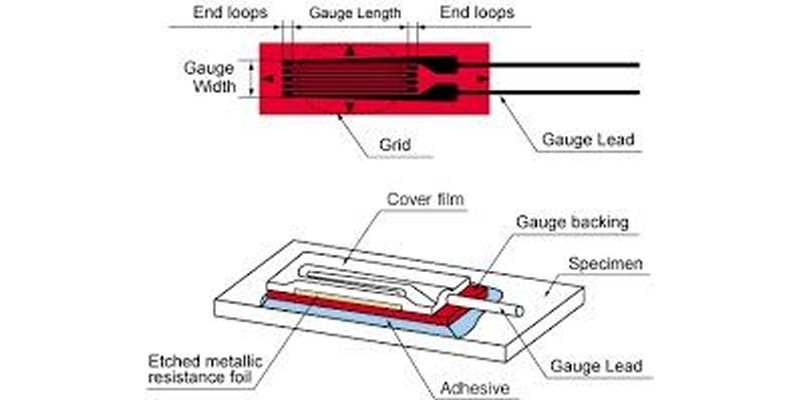

Developed using strain gauge bridge-based technology, this system allows direct input from quarter, half, and full-bridge configurations, enabling flexible connection of various sensor types such as strain gauges, LVDTs, load cells, and thermocouples.

• Key Features
  • Up to 50 Strain Channels per Unit – Scalable up to 1,000 channels via unit synchronization
  • High-Speed Sampling – Up to 1kHz/channel for dynamic strain recording
  • Bridge Excitation & Amplification – Built-in support for 120Ω and 350Ω strain gauges
  • Multi-Sensor Compatibility – Supports strain, voltage, and thermocouple input types
  • LAN-Based Connectivity – Reliable, long-distance data transfer up to 100 meters between units
  • Time Synchronization – Achieves consistent multi-point strain and stress evaluation
• Applications
  • Structural Health Monitoring (SHM) – Bridges, tunnels, dams, and towers for strain, crack growth, and load behavior tracking
  • Automotive Testing – Fatigue, impact, and vibration analysis on chassis, suspension, powertrain components
  • Aerospace R & D – Wing load distribution, fuselage stress, modal testing during vibration and acceleration
  • Civil Engineering – Load response in buildings and infrastructure under static and dynamic conditions
• Software & Control

  Visual LOG DS-750 / RD-7640 Software Suite

  • Real-time waveform monitoring
  • Trigger-based data logging
  • FFT, strain-time, and stress-time graphing
  • Multi-file export (CSV, Excel, binary)
• Technical Specifications

  Parameter	Specification
  Channels per Unit	50 channels
  Sensor Input	Strain Gauge, Voltage, Thermocouple
  Sampling Speed	Up to 1 kHz/channel
  Resolution	1 µε for strain / 1 mV for voltage
  Excitation	Built-in bridge circuit, 120/350Ω
  Voltage Input Range	±20 V
  Temperature Sensor Support	Thermocouple Type T, J, K
  Communication	Ethernet (LAN 100BASE-TX)
  Power Supply	100–240V AC, 50/60Hz
  Dimensions	420 x 110 x 298 mm
  Weight	Approx. 5 kg

Why Choose DS-50A from Proact IMS?

• Trusted in national infrastructure projects, crash testing labs, and defense R & D
• Plug-and-play setup with pre-calibrated strain inputs
• Excellent for long-term monitoring or high-speed transient capture
• Rugged design suitable for field or lab environments
• Backed by Proact’s technical team for system setup, training, and post-deployment support
