Miniature Strain Gauge Amplifier ICA H & S

Miniature Strain Gauge Amplifier ICA H & S

• The ICA range of miniature strain gauge amplifier offer a high performance strain gauge amplifier in miniature OEM format, designed specifically for fitting inside load cells, converts load cell to 4-20 mA & 0-10 V output.
• The ICA family offers high stability and fast response. The miniature strain gauge amplifier is available in 6 versions, ICA1H, 2H, 3H, 4H & 6H with high performance and ICA5S with industrial stability.
• The ICAH range offer very low drift over wide operating temperatures.
• Optional (ILE) in line enclosure to convert a standard load cell to a conditioned load cell output

Very High Stability ICAH

• ICA1H 0-10 V 3 wire
• ICA2H 0-5 V 3 wire
• ICA3H ± 10 V 4 wire
• ICA4H 4-20 mA 3 wire
• ICA6H ± 10 V 3 wire

Industrial Stability ICAS

• ICA5S 4-20 mA 2 wire
• ATEX Intrinsically Safe
• ICA5ATEX 4-20 mA 2 wire

• Features

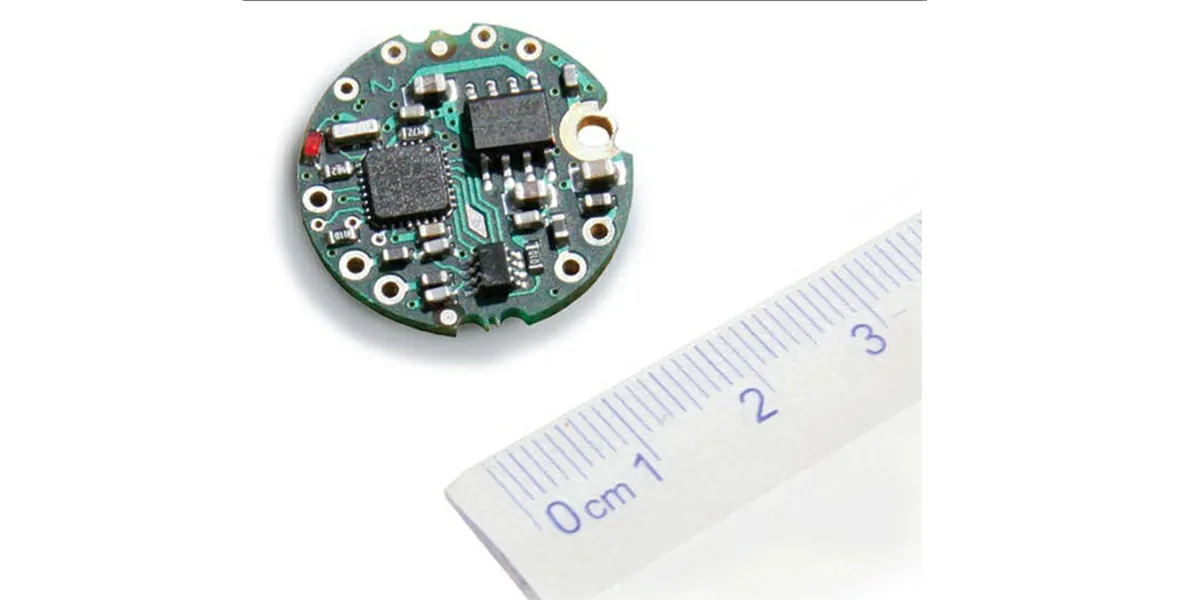

  • Fits inside sensors, 19.5 mm diameter, 7.6 mm height
  • Outputs of 4-20 mA, 0-10 V, 0-5 V, ±10 V
  • Non interaction between the trimmers makes calibration fast and easy
  • High speed 1000 Hz
  • User selectable span resistor
  • 2 wire 4-20 mA load cell option
  • Robust design, of high noise immunity & reverse polarity protected
