Coating Tape for Reinforcing Bar

Coating Tape for Reinforcing Bar

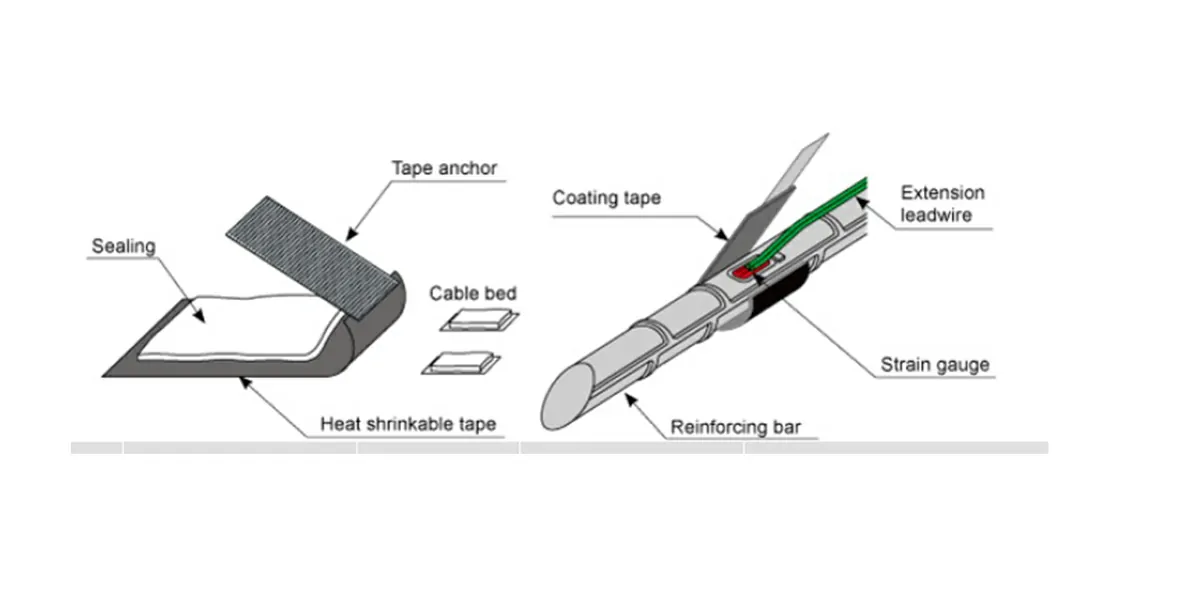

This tape is specially designed for use as a waterproof coating for strain gauges bonded onto reinforcing bars or other cylindrical surfaces. Coating is achieved by simply taping it onto the surface, saving considerable time in comparison with conventional procedures. (A heat gun is required for application.)

• Types of Coating Tape

  Types	Applicable reinforcing bar	Quantity per box	Applicable strain gauges	Reinforcing bar	Diameter x Width (mm)
  CT-D04	D4	10	FLKB-2-11	D4	Φ10 x 21
  CT-D06	D6	10	FLKB-2-11	D4	Φ12 x 21
  CT-D10	D10	10	FLKB-2-11	D10	Φ15 x 21
  CT-D13	D13	10	FLAB-3-11	D13	Φ19 x 26
  CT-D16	D16	10	FLAB-3-11	D16	Φ21 x 26
  CT-D25	D19 to D25	10	FLAB-3-11	D25	Φ31 x 31
  CT-D35	D29 to D35	10	FLAB-3-11	D32	Φ37 x 35
