Gauge protector

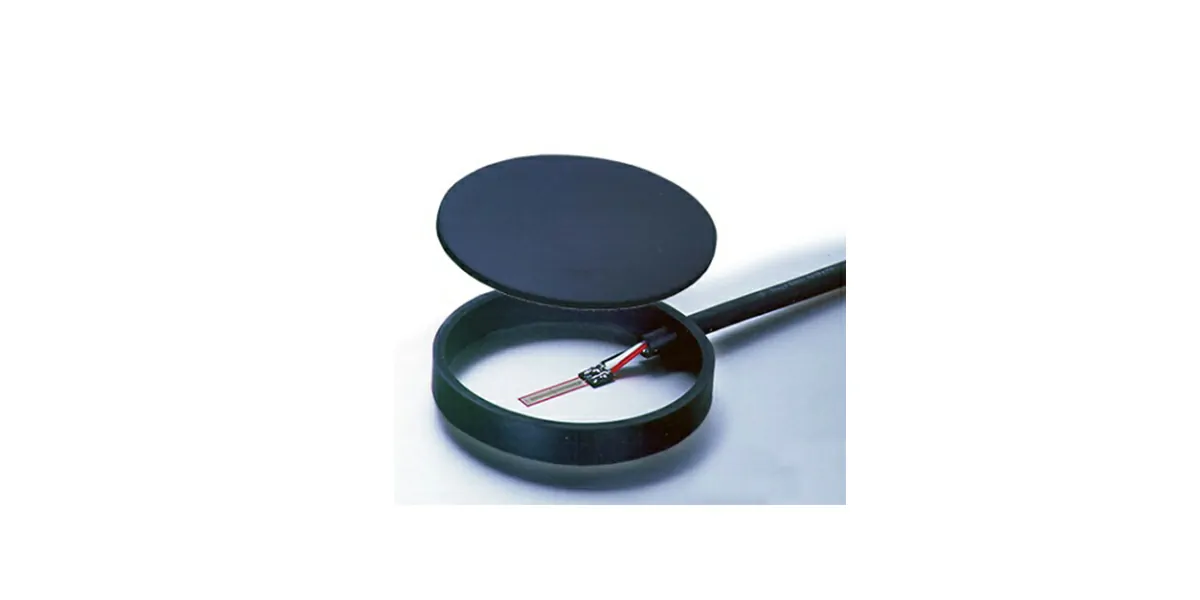

This rubber protector is designed to protect gauges which are bonded onto metal surface from the environment for long-term measurement. The strain gauge is packed inside together with the applied adhesive and overcoating materials. The protector is also provided with a hole for cable intake. It allows the entire area to be isolated from ambient conditions which may affect reliable measurement, and further increases the coating performance.
-
Technical Specifications
After completing the 1st and 2nd overcoating layers, epoxy resin is injected to provide mechanical protection.
Specification Details Dimensions (mm) Frame Φ100 (InnerΦ92) x 15 (Height)
Cover Φ100 x 3 (Thick)Cover Φ100 x 3 (Thick) -20 to +80 Extension cable Φ9mm cable recommendable Strain gauges with a large-size backing, such as the PFL-30-11 ane PL-60-11, cannot be used with the Gauge Protector.
