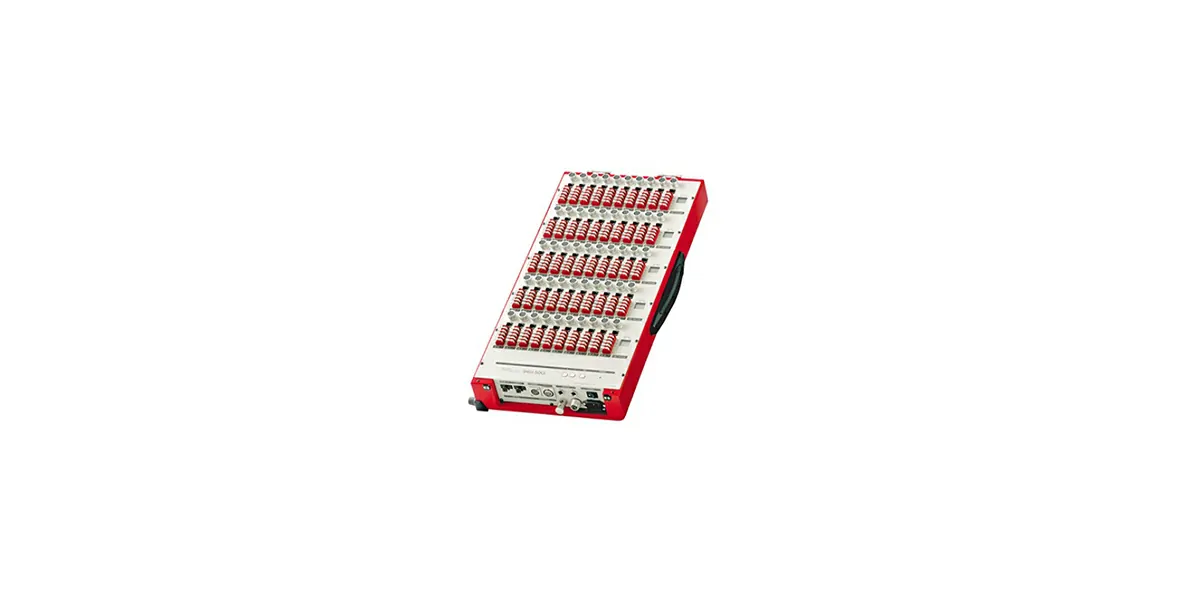

High Speed Switching Box IHW-50G

This is an A/D converter-integrated switching box offering high-speed, high-accuracy measurement and developed to allow expansion of measurement points combined with a data logger. It can measure 50 points in a high-speed 0.4 seconds. Several switching boxes in system and with parallel use of the integrated A/D converters allows strain measurement of 1,000 points in the same 0.4 seconds. High-speed digital communication by RS-422 insulated from the measuring unit or optical fiber makes it extremely resistant to noise. IHW-50G-01 (factory-installed option) allows measurement in high-speed mode (HSP) when connected to only a single TDS-630 high-speed, high-functionality data logger.

• Features
  • TML 1-gauge 4-wire method with one-touch connection by modular plug
  • Electrically insulated from data logger
  • Measurement of strain, DC voltage, temperature with PtRTD and thermocouple
  • High resolution mode of 0.1 x 10-6 strain measurement incorporated
  • Scanning time is 0.04 second for one channel. It can measure 50 channels in 0.4 second.
  • With built-in surge absorber for lightning
