Switching Box

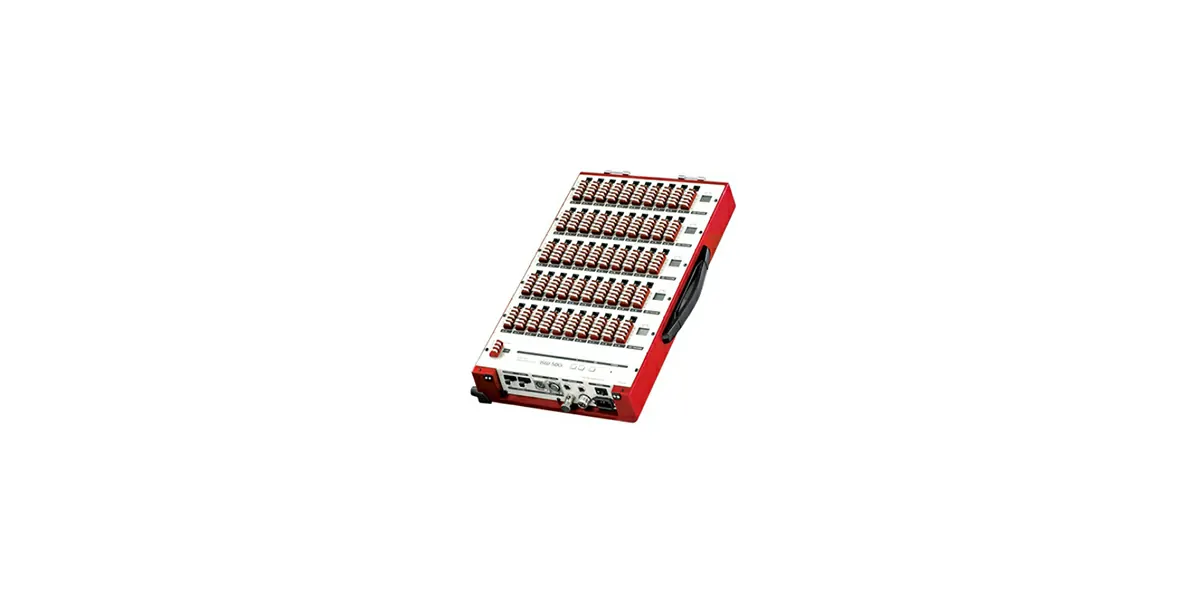

Switching Box ISW-50G
- This is a switching box with a built-in A/D converter (ADC) developed to expand the number of measuring channels combined with a data logger TDS-540, TDS-630, or TDS-530.
- Combined use with a data logger TDS-540 and 20 switching boxes ISW-50G allows high-speed scanning of 1000 channels in 3 seconds.
-
Features
- TML 1-gauge 4-wire method with one-touch connection by modular plug
- Electrically insulated from data logger
- Multi-measurement of strain, DC voltage, temperature with PtRTD and thermocouple
- High resolution mode of 0.1 x 10-6 strain measurement incorporated
- Scanning time is 0.04 second for one channel. It is 2 seconds for 50 channels.
- The ISW-50G-05 is equipped with one-touch connector receptacles for all channels in addition to standard terminals.
- Built-in surge absorber for lightning
- Simultaneous measurements of strain and temperature in the same channel with temperature-integrated strain gauge
Specifications
Switching Box SSW-50D
- The SSW-50D switching box is used in combination with TML Data Loggers to expand the measuring channels. The number of measuring channel is 50 per unit, and in addition to measurements of strain in ordinary bridge configurations, DC voltage and thermocouple, and a new strain measurement method with a 1-gauge 4-wire is provided.
- Since modular connector plugs are available for the 1-gauge 4-wire measurement, wire connection can be speedy finished.
Features
- One-touch connection with 1-gauge 4-wire method and modular plug
- Available for strain, DC voltage and thermocouple measurements
- High resolution mode of 0.1 x 10-6 strain available
- Built-in power booster provided for long distance or large number of channels extension
- The SSW-50D-05 is equipped with one-touch connector receptacles for all channels in addition to standard terminals.
- Can be used with TML Switching boxes model SSW / ASW / ISW-50C
- Option includes built-in heater for moisture prevention
