Hydraulic jack control unit

Hydraulic jack control unit

This device is used for load/displacement control and holding control of hydraulic jacks, and can control 2 or 4 systems. The amplifier can be controlled by a personal computer for auto-zero, range setting, calibration, etc. The detected load and displacement can be calculated by the PC as a sum of two points, averaged, etc., to control the load and displacement of the jack as desired.

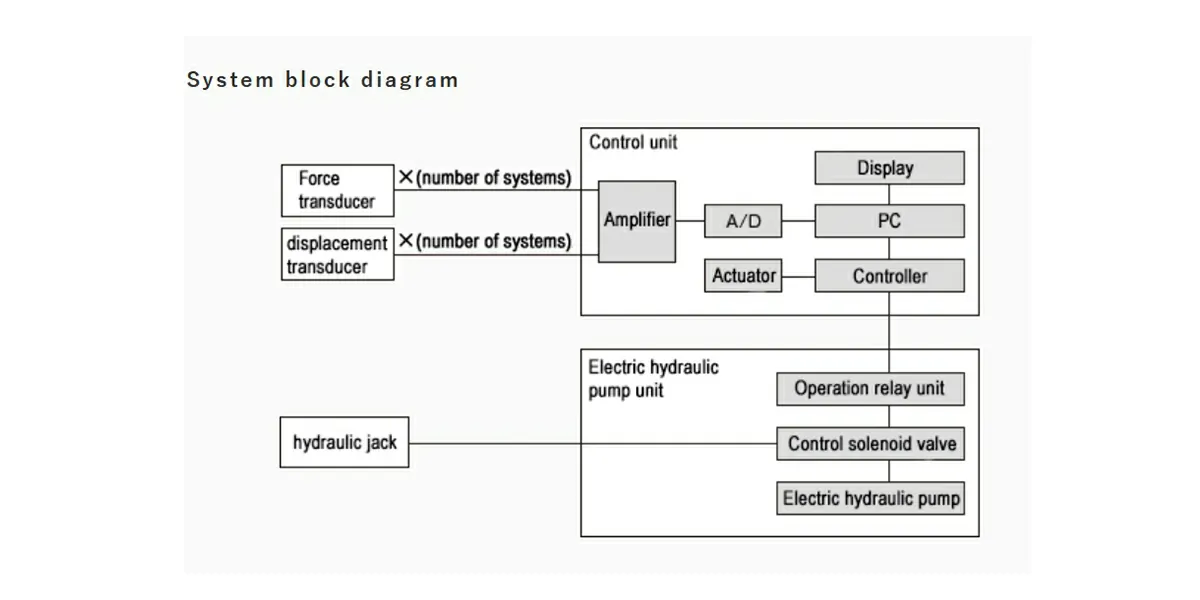

Product Configuration

• Sensor
• Control unit
• Electric pump unit


• Features
  • 2 or 4 hydraulic jack systems can be controlled
  • Amplifier can be mounted up to 12 channels
  • PC control of auto-zero, range setting, calibration, etc. possible
  • Detected load and displacement can be calculated by summing two points, averaging, etc.
  • Load and displacement control of jacks can be automatic or manual
  • Electric pump and control solenoid valve integrated
  • Manual push/pull control is possible
