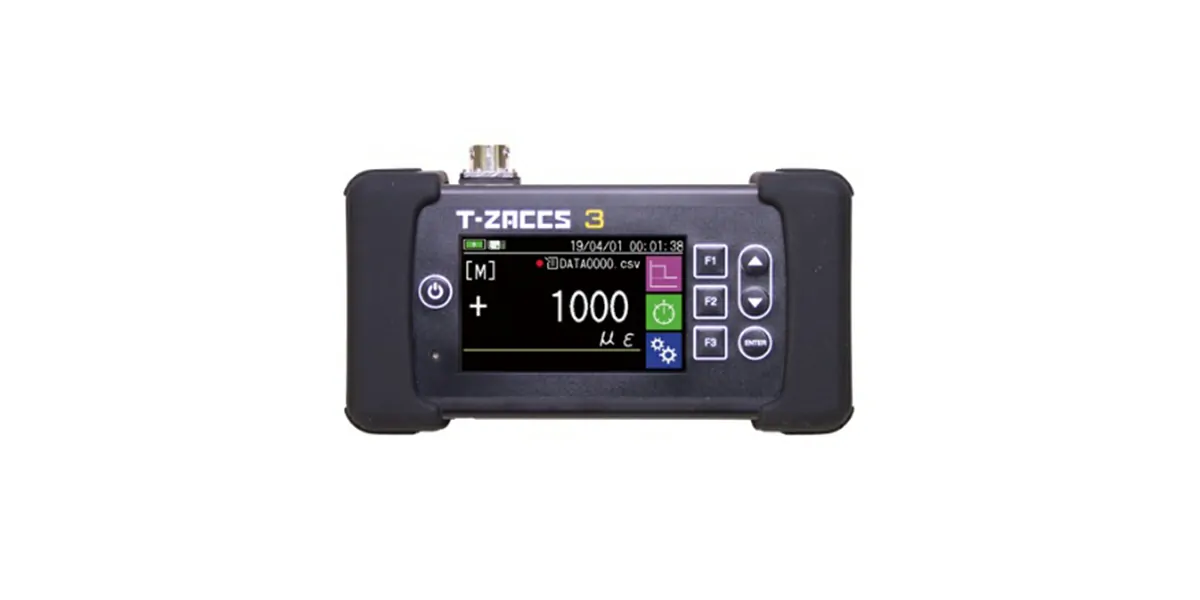

MM-014 Pocket Data Logger

MM-014 Pocket Data Logger

Ultra-Compact, High-Precision Logger for Strain & Sensor Data in the Field

The MM-014 Pocket Data Logger by Proact IMS is a lightweight, easy-to-use device designed for portable data acquisition in civil, industrial, and R&D applications. Its compact form factor and battery operation make it ideal for on-site strain measurement, temporary monitoring, and spot checks where larger systems are impractical.

Compatible with a wide range of strain gauges, load cells, and transducers, the MM-014 delivers accurate data recording with simple operation — ensuring reliable results for engineers and inspectors in the field.

• Key Features
  • Single-Channel Precision Measurement – Supports quarter, half, and full bridge sensors
  • Ultra-Portable Design – Pocket-sized, lightweight, battery-powered
  • High Accuracy – 24-bit A/D converter ensures precise readings
  • Easy Data Export – USB interface for data download and analysis
  • Simple User Interface – Minimal buttons with clear digital display
  • Onboard Memory – Internal storage for thousands of data points
  • Low Power Consumption – Long battery life for extended field use
• Technical Specifications

  Specification	Details
  Channels	1 channel
  Sampling Rate	1–10 samples per second
  Supported Inputs	Strain gauges, load cells, pressure sensors (bridge type)
  Data Storage	Internal memory (e.g. flash)
  Communication	USB for data download
  Power	Battery (rechargeable/replaceable)
  Size / Weight	Pocket-sized, under 300 g
  Display	LCD or LED digital readout
  Measurement Range	±32,000 με (microstrain)
  Operating Temperature	-10°C to +50°C

• Applications

  Civil Engineering Spot Checks

  • Bridge, tunnel, and slab strain validation
  • Load test verification on-site

  Automotive & Transport Testing

  • Frame stress measurement during field trials
  • Mobile load verification

   Industrial Equipment Monitoring


  • On-the-go stress/strain checks for machinery
  • Temporary sensor data logging

  Material Testing (Portable


  • Quick sample strain measurement in lab or field


Integration & Compatibility

• Direct connection to strain gauges, load sensors, pressure transducersF
• Data export for processing in Excel, LabVIEW, MATLAB, or Proact DAQ suite
• Can be combined with thermal sensors for compensated strain analysis

 Why Choose Proact IMS MM-014 Pocket Data Logger?

• Compact and rugged for true field portability
• Fast setup — ready to measure in minutes
• Accurate and reliable under real-world conditions
• Seamless data transfer for detailed analysis
• Backed by Proact IMS for calibration, support, and accessory options
