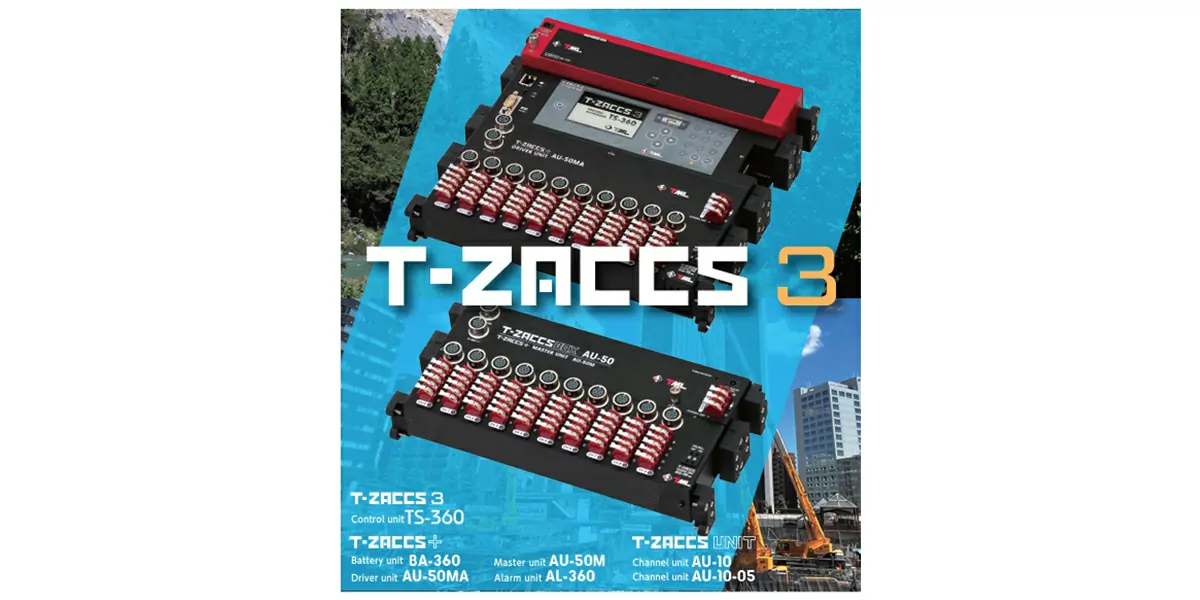

TS-360 Portable Data Acquisition System

Portable Data logger TS-360 – Multi-Channel Dynamic Strain Data Acquisition System

TS-360 is a data logger that can be combined with various units around a control unit to build a system to suit your measurement style. This data logger can measure up to 1000 points of strain gauges, strain gauge transducers, DC voltage, and thermocouples by connecting to an external switching box.

Developed using strain gauge bridge-based technology, this system allows direct input from quarter, half, and full-bridge configurations, enabling flexible connection of various sensor types such as strain gauges, LVDTs, load cells, and thermocouples.

• Key Features
  • Up to 1000 points Number of measurement points Max. 50 points for main unit connection / External connection: up to 1000
  • points in total
  • LAN interface as standard Remote control is available
  • Battery-powered operation Powered by 4 single batteries or AC adapter (12V battery)
  • Low power consumption operation
  • External switch box can connect up to 20 units
  • Measurement speed 0.08 sec/point
• Applications

  Structural Health Monitoring (SHM)

  • Bridges, tunnels, dams, and towers for strain, crack growth, and load behavior tracking

  Automotive Testing

  • Fatigue, impact, and vibration analysis on chassis, suspension, powertrain components

  Aerospace R&D

  • Wing load distribution, fuselage stress, modal testing during vibration and acceleration

  Civil Engineering

  • Load response in buildings and infrastructure under static and dynamic conditions

System Integration

• Compatible with TML DAQ software suite
• Supports data synchronization across multiple units
• Ideal for strain rosette analysis, load-deflection mapping, and sensor array integration
• Easily pairs with load sensors, LVDTs, temperature sensors, and more

Why Choose TS-360 from Proact IMS?

• Trusted in national infrastructure projects, crash testing labs, and defense R&D
• Plug-and-play setup with pre-calibrated strain inputs
• Excellent for long-term monitoring or high-speed transient capture
• Rugged design suitable for field or lab environments
• Backed by Proact’s technical team for system setup, training, and post-deployment support
