- Made of all stainless steel for excellent corrosion resistance
- Excellent reliability
- Easy automatic measurement
- Up to 15 steps can be measured
- Model KB-KG can measure in X- and Y-direction with a single unit
- Enquiry To - sales@proact-ims.com
Multi-layer inclinometer
Multi-layer inclinometer

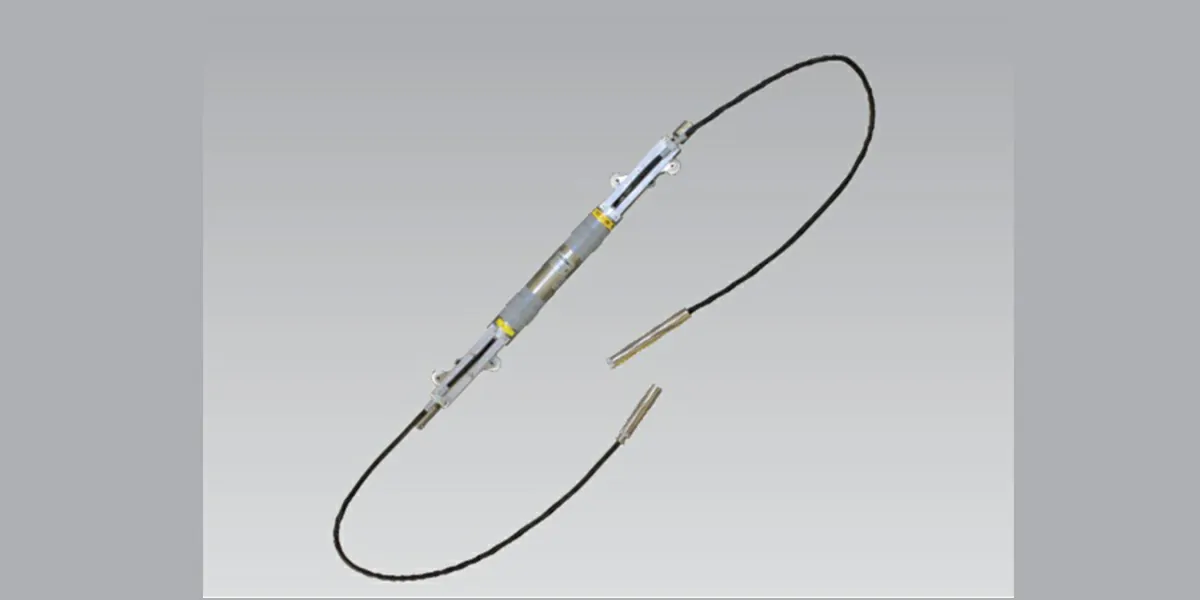

Multi-layer inclinometer KB-JG/KB-KG ±5° to ±10°
This is the inclinometer for automatic measurement of ground and structure displacement.
A dedicated guide pipe is installed in the ground or structure in advance, and multiple inclinometers are connected and fixed in the guide pipe with relay rods (KBF-JG33/KBF-KG33) so that they are at the measurement position.
Automatic measurement can be carried out using the data logger TDS/TS series.
Graphic display of displacement is also possible.
Used for measuring landslide displacement and earth retaining wall displacement.
The KB-JG and KB-KG models are available according to the number of measurement axes. The KB-JG model can only measure in one direction, while the KB-KG model can measure in both X and Y directions simultaneously. Built-in arresters can also be manufactured.
- Protection rating: IP68 equivalent
-
Features
