Platinum RTD/Thermocouples

Platinum RTD/Thermocouples

These platinum RTD (resistance temperature detector) and thermocouples are mounted on a specimen and connected to a data logger (TDS-540, TDS-630 etc.) to measure temperature.

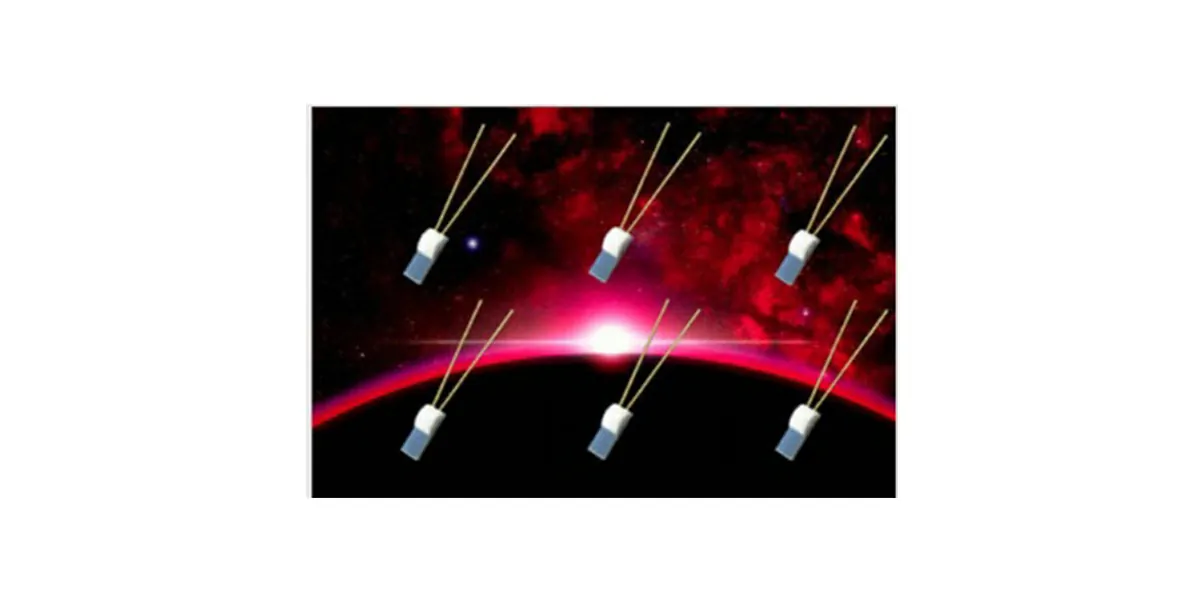

PLATINUM RTD (Pt100)

The platinum RTD is mount ed on a specimen and connect to a data logger to measure temperature. Easy measurement of temperature by bonding to a specimen with strain gauge adhesive. Units equipped with lead wire are also available upon request.

Thermocouples

A thermocouple configures the closed circuit in which a small electric current flow in the circuit composed of a pair of dissimilar conductors, and measures temperature using thermoelectric effect produced at both ends of conductors in different temperatures.

• Types Of Platinum RTD

  Types	Rated current	Base size (mm)	Resistance in (Ω)	Operational temperature (℃)
  CRZ-2005	1mA or less	5.0x2.0x1.1	100 (at 0 ℃)	-40 to +400 ℃

• Types Of Thermocouples

  Types	Thermo- couple code	Core diameter (mm)	Outer diameter	Sheath materials	Outer sheath	Heat- resistive temperature	Length of one roll	Remarks
  T-G-0.32	T	0.32	2.1x3.2	Heat-resistive	Brown	100 ℃ approx.	100m
  T-G-0.65	T	0.65	2.6x4.0	Heat-resistive	Brown	100 ℃ approx.	100m
  T-6F-0.32	T	0.32	1.0x1.6	Fluoro-ethylene propylene	Brown	200 ℃ approx.	100m
  T-6F-0.65	T	0.65	1.5x2.5	Fluoro-ethylene propylene	Brown	200 ℃ approx.	100m
  T-GS-0.65	T	0.65	Φ7.2	Heat-resistive vinyl (shielded)	Brown	100 ℃ approx.	100m	Shielded
  K-H-0.32	K	0.32	1.4x2.3	Glass fiber	Blue	250 ℃ approx.	100m
  K-H-0.65	K	0.65	2.0x3.4	Glass fiber	Blue	250 ℃ approx.	100m
