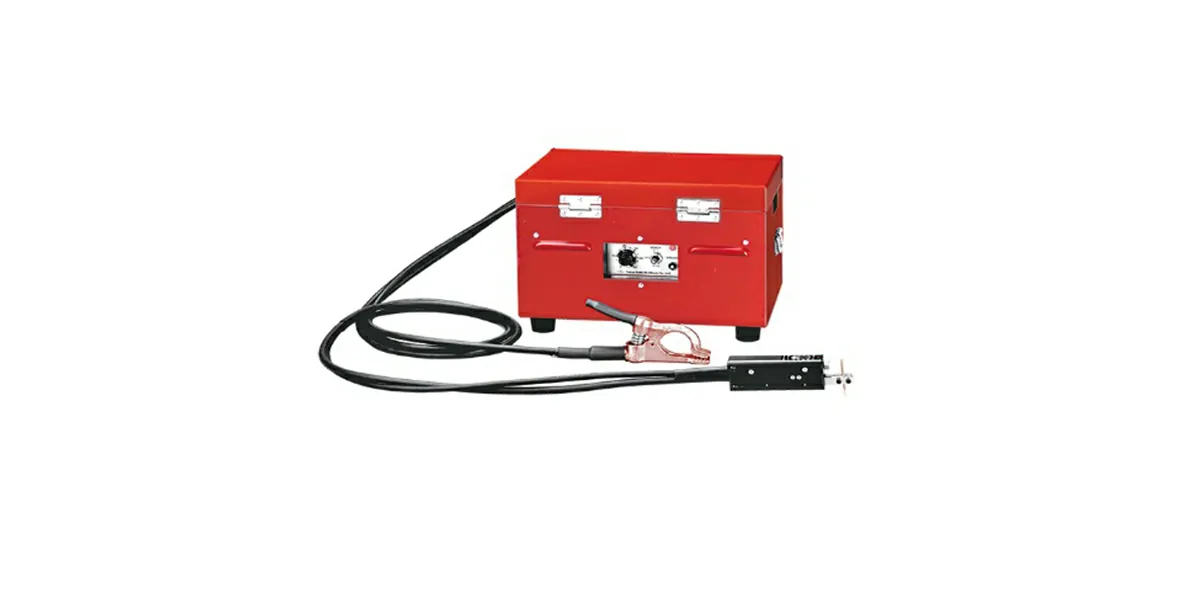

SPOT WELDER W-50RC

This is a capacitive charge spot welder used for installing weldable strain gauges and fixing lead wires. The welding energy is controlled in 2 ranges of 1~10/5~50 watt second continuously, and a stabilizing circuit cancels the effect of changes in the power source voltage. Projecting parts such as electrical cables is packed inside, it is extremely convenient for field applications.

• Technical Specifications

  Specification	Details
  Dimensions	300(W)x195(H)x195(D)mm
  Weight	13kgs.
  Power source	90 to 110V ac
  Welding energy	1 to 10 watt sec./5 to 50 watt sec. continuous 60 watt sec. Max. (110V ac. 50Hz)
  Output voltage	Approx. 32V Max.
  Output pulse width	Approx. 5 msec.
  Repetion use	2 welds/sec. at 50 watt sec.
