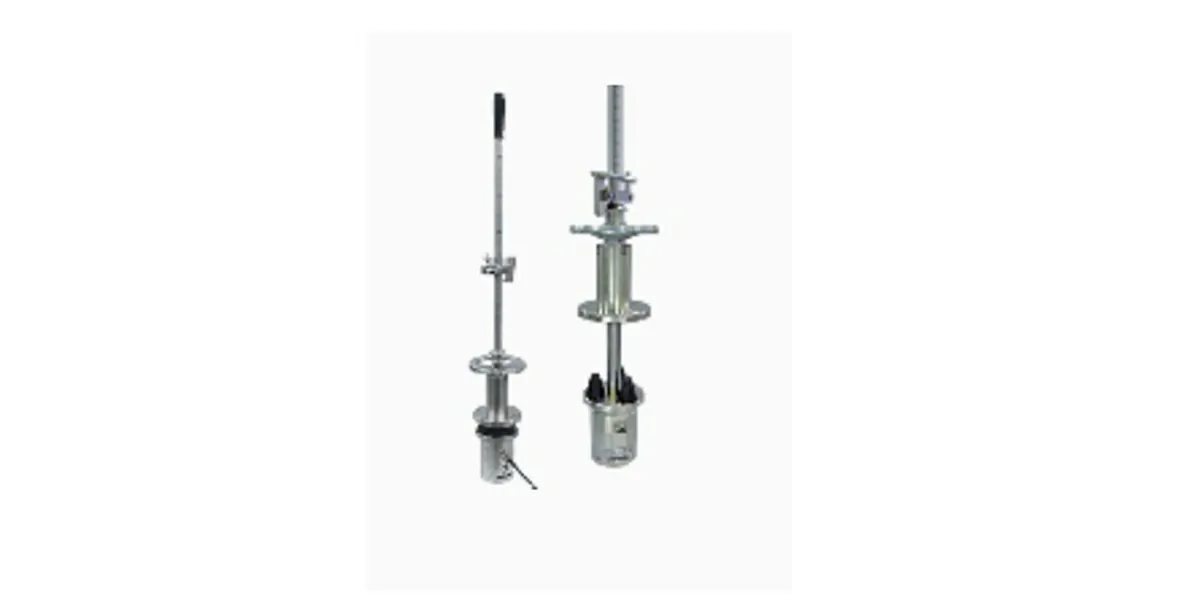

Small FWD main body KFD-100A
KFD-100A is a small body falling from a heavy weight and loading of the accelerometer and built-FWD load meter free-fall will be the weight of the body weight, total amount of load and displacement values when the impact load, using an accelerometer measures. Displacement of the accelerometer measurements are derived by integrating two times.
- Degree of protection IP 42 equivalent
-
Small FWD System FWD-Light
FWD-Light Product Configuration
Product Name Compact set Standard set Notes: Standard accessories Main Body KFD-100A
Built-in sensor
acceleration transducer
load cellweight (5kg)：KFDF-11-05
Loading plate (ø100 x 15(thick)mm)
:KFDF-31-100
5m cableExclusive Indicator TC-351F
Of view (21 digits × 8 lines)
RS-232C interface
Card slotAC Power Battery Pack Mobile Storage
Aluminum Carrying Case
KFDF-21-1- Storage: body, only indicator options
(external displacement sensor,
the printer only)64MB
Compact flash memory card- - Memory card adapter - -
