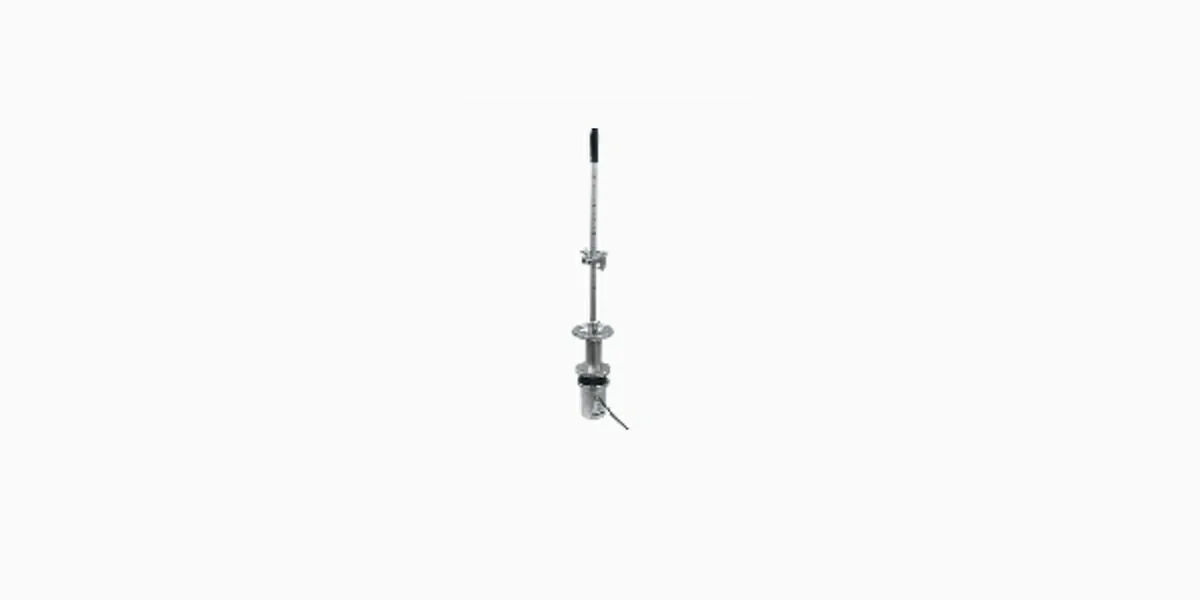

Wireless Compact FWD Main Unit KFDT-100A

KFD-100A is a small body falling from a heavy weight and loading of the accelerometer and built-FWD load meter free-fall will be the weight of the body weight, total amount of load and displacement values when the impact load, using an accelerometer measures. Displacement of the accelerometer measurements are derived by integrating two times.

• Degree of protection IP 42 equivalent

• Technical Specifications

  Specification	Details
  Dimensions of loading plate	φ100 x 15(thick)mm
  Sensor Input	Strain Gauge, DC voltage, Thermocouple
  Mass of weight	5kg
  Falling height	50 to 530mm
  Falling method of weight	Lever (with stopper)
  Maximum load	20kN
  Miaximum displacement	2.500mm
