TD-96A High-Speed Digital Indicator

TD-96A High-Speed Digital Indicator

Fast-Response Display for Dynamic Force, Load, and Strain Measurements

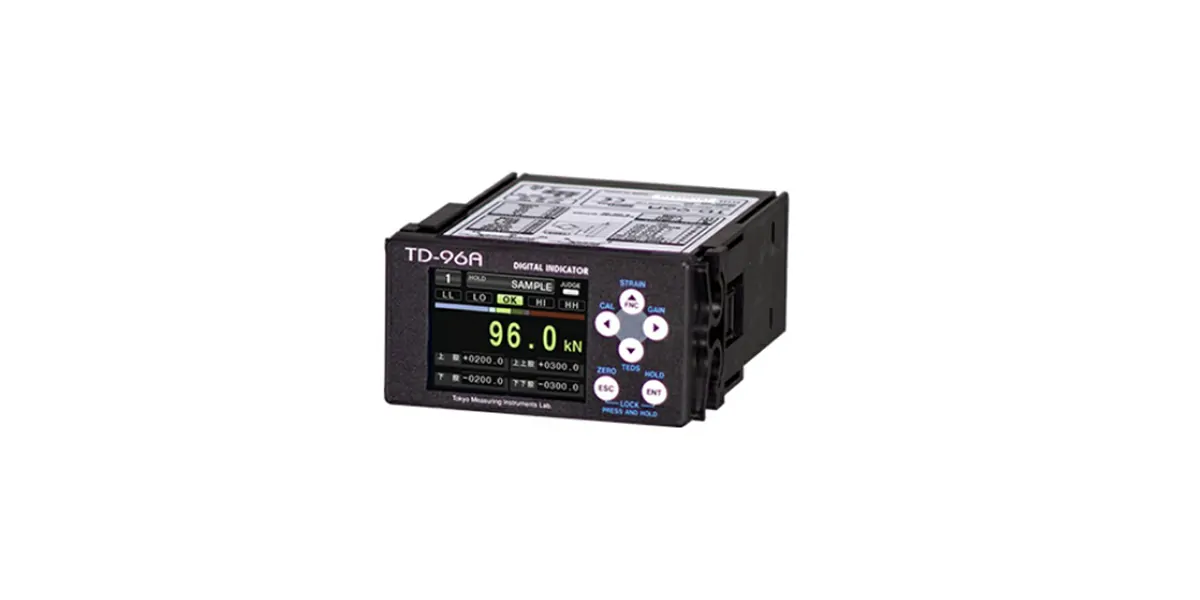

The TD-96A High-Speed Digital Indicator from Proact IMS is engineered for applications requiring real-time, high-speed display of dynamic physical measurements. Designed to interface with load cells, strain gauges, pressure transducers, and other bridge-based sensors, the TD-96A provides accurate, low-latency readouts ideal for press monitoring, impact testing, and industrial automation.

Compact and configurable, it features advanced signal processing, peak hold, and alarm functions, making it suitable for both standalone use and integration into control and data acquisition systems.

• Key Features
  • High-Speed Sampling – Fast data refresh rate for dynamic monitoring
  • Wide Sensor Compatibility – Supports mV/V inputs from load cells, strain gauges, pressure sensors, and LVDTs
  • Real-Time Display – Bright LED readout with configurable decimal point and units
  • Peak Hold & Valley Hold – Capture maximum and minimum values during testing
  • Analog & Digital Outputs – 4–20 mA, 0–10 V, RS-485, Modbus for system integration (optional)
  • Alarm Relay Outputs – Trigger external devices or safety interlocks on limit exceedance
  • Compact Panel Mount Design – Easy integration into test rigs and machinery
• Technical Specifications

  Specification	Details
  Input Signal	mV/V (strain gauge, load cell compatible)
  Display Resolution	24-bit A/D conversion, fast refresh
  Sampling Rate	Up to 1,000 readings/sec (hardware dependent)
  Outputs	4–20 mA, 0–10 V, RS-485, Modbus (optional)
  Power Supply	230V AC / 24V DC
  Operating Temperature	-10°C to +50°C
  Enclosure	Panel mount, IP40 (standard), IP65 front option

• Applications

  Dynamic Load & Strain Monitoring

  • Impact testing, press force feedback, dynamic load cycles

  Industrial Machinery

  • Press force monitoring, stamping load feedback

  Automotive & Aerospace Testing

  • Crash and impact force display, suspension force measurement

  Material Fatigue & Impact Testing

  • Real-time strain/load readout during dynamic test cycles


System Integration

• Direct connection to Proact sensors: load cells, strain gauges, LVDTs, etc.
• Outputs for linking to PLC, SCADA, DAQ, and automation systems
• Configurable for triggering external alarms or process controls

 Why Choose Proact IMS TD-96A High-Speed Digital Indicator?

• Designed for fast-response, dynamic measurement applications
• High accuracy with low-latency display
• Flexible integration with industrial automation and data logging systems
• Supports peak, valley, and real-time modes for versatile use
