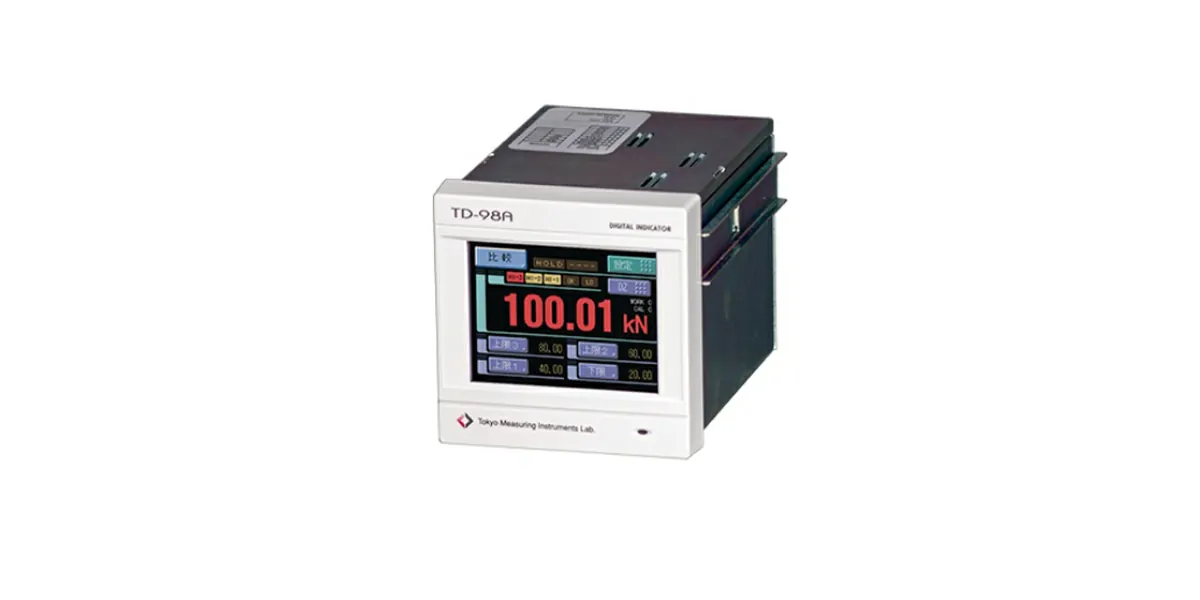

TD-98A Digital Indicator

TD-98A Digital Indicator

High-Precision Digital Display for Load, Strain, Pressure, and Displacement Measurements

The TD-98A Digital Indicator from Proact IMS is a versatile, high-accuracy display unit designed to interface with a wide range of sensors, including load cells, strain gauges, pressure transducers, and displacement sensors. Compact and rugged, the TD-98A is ideal for both lab-based measurements and industrial field applications, delivering reliable, real-time feedback for force, stress, displacement, and other physical parameters.

Built for easy integration, the TD-98A offers both analog and digital outputs, making it suitable for standalone monitoring or as part of a larger automation or DAQ system.

• Key Features
  • High-Resolution Display – Bright LED/LCD numeric display for clear readings in all environments
  • Sensor Compatibility – Works with mV/V inputs from load cells, strain gauges, LVDTs, and more
  • Configurable Units – Display in engineering units such as N, kgf, lbf, με, mm
  • Peak Hold / Tare Functions – Capture maximum values or zero out loads during testing
  • Analog & Digital Outputs – Optional 4–20 mA, 0–10 V, RS-485, Modbus for external integration
  • Alarm & Relay Outputs – User-set thresholds with relay triggering for process control
  • Compact & Rugged Design – Suitable for panel mount or portable use
• Technical Specifications

  Specification	Details
  Input Type	mV/V, configurable for strain/load sensors
  Display Resolution	Up to 24-bit A/D conversion
  Output Options	4–20 mA, 0–10 V, RS-485, Modbus (optional)
  Power Supply	230V AC / 24V DC
  Operating Temperature	-10°C to +50°C
  Enclosure	IP40 (standard), IP65 front panel (optional)
  Mounting	Panel, benchtop, or enclosure

• Applications

  Structural Load & Strain Display

  • Real-time monitoring during load tests of beams, columns, and slabs

   Industrial Machinery


  • Force monitoring in presses, jigs, and fixtures

   Material Testing Labs


  • Precise display of strain/load during tensile or compression tests

  Crane & Hoist Safety Monitoring


  • Display live load data for operator safety

System Integration

• Direct connection to Proact load cells, strain gauges, LVDTs, and other sensors
• Integrates with SCADA, PLC, DAQ systems, and automation platforms
• Output signals compatible with process controllers and remote alarms

Why Choose Proact IMS TD-98A Digital Indicator?

• High precision for critical measurement applications
• Supports custom scaling and engineering units
• Flexible integration with both manual operations and automated systems
• Robust design for industrial and lab environments
• Backed by Proact IMS for support, calibration, and lifecycle service
