Connecting Terminals

Connecting Terminals

• TML Connecting Terminals provide convenient junction points to connect strain gauges to instrumentation leadwires.

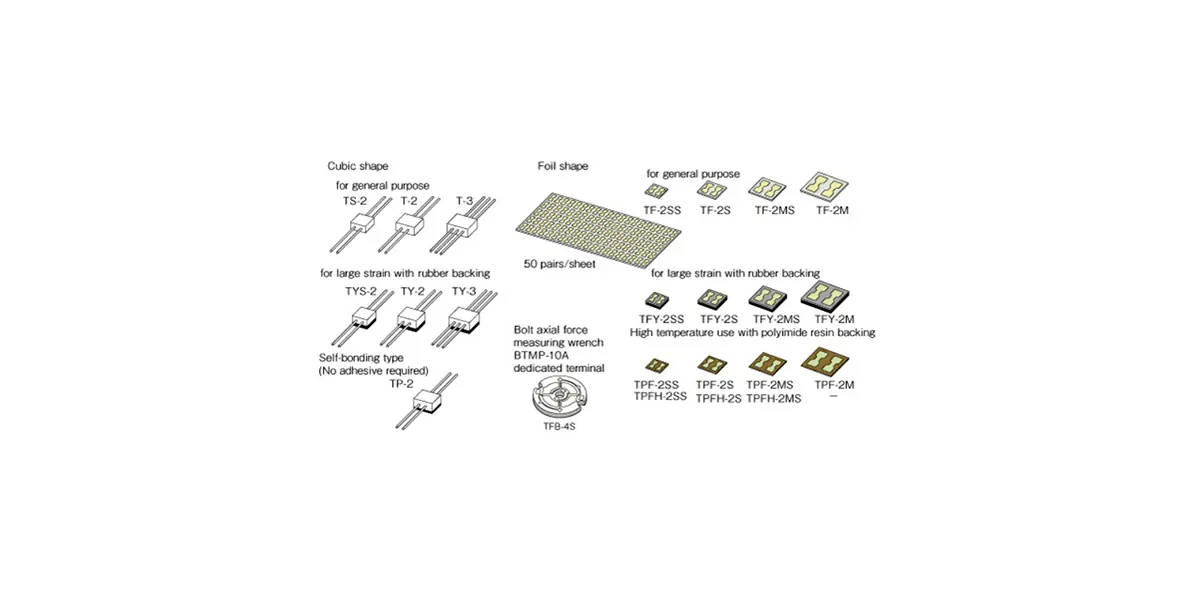

• T series is made of a cubic plastic and two wires of approximately 0.8mm diameter are fixed to the cube. TY is laminated with rubber sheet and suitable for large strain measurement. TP-2 is a self-bonding terminal with two wires. TF is made of a 0.03mm thick copper foil and a glass-epoxy insulation base of approx. 0.15mm thick. TFY is laminated with rubber sheet approx. 0.8mm thick over the back side of TF series terminals.
