Relay Cable

Relay Cable

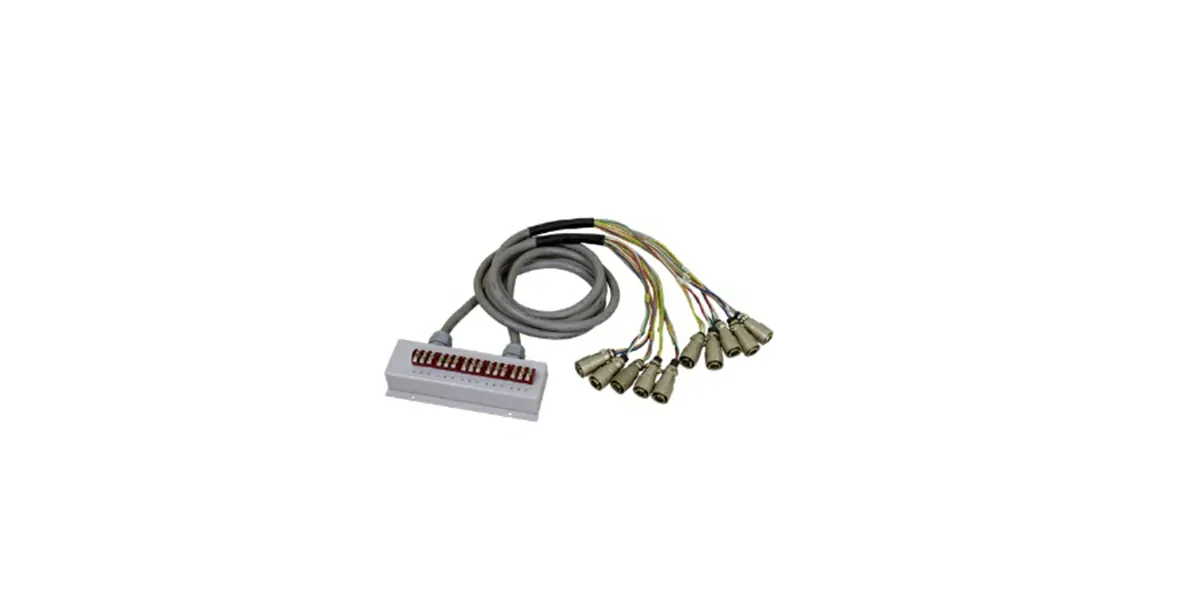

This relay cable is specifically designed for use with chain gauges (CCFXX, CCFYX). It internally converts 11-line wiring to 30-line wiring, allowing for easy connection to measuring instruments via an NDIS plug.

Chain Strain Gauges measurement method

This relay cable is specifically designed for use with chain gauges (CCFXX, CCFYX). It internally converts 11-line wiring to 30-line wiring, allowing for easy connection to measuring instruments via an NDIS plug.

• Types Of Relay Cable

  Types	Length of cable standard (m)	No. of connection Operational temperature (℃)	Operational temperature (℃)	Dimension WidexDepthxHeight (mm)	Core/diameter (Cross section area)
  CGLJ-10A(3)	3	10	0 to +80	170x66xapprox.46	Φ11.1mm 20/0.18 (0.5mm2)
