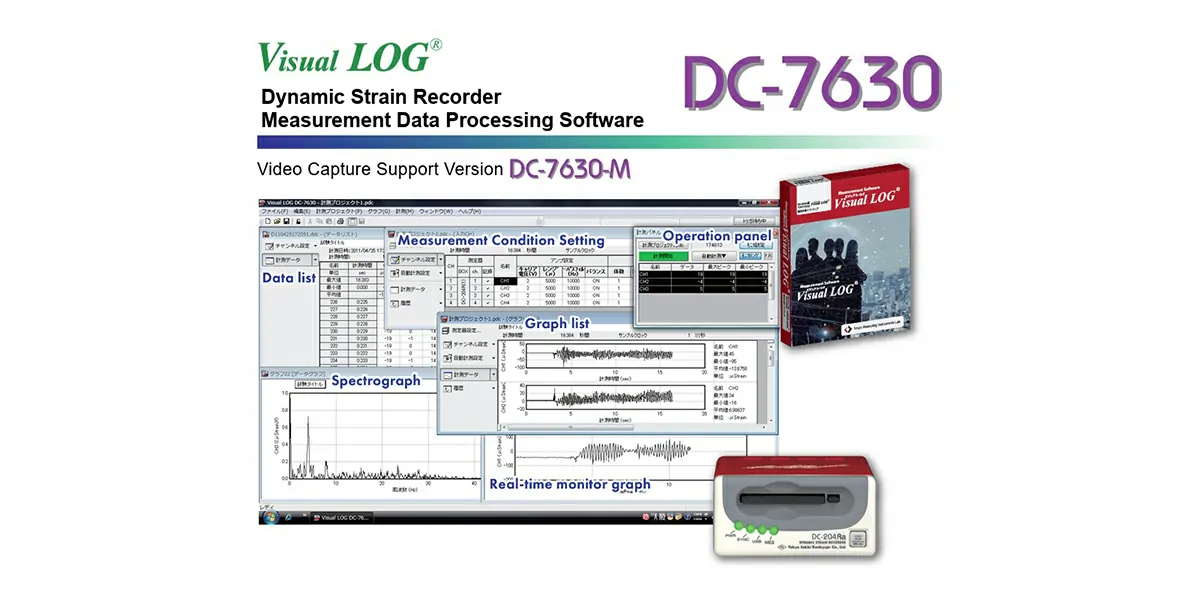

DC-7630 Dynamic Recorder Software

DC-7630 Dynamic Recorder Software

High-Speed Data Acquisition Software for Strain, Load, Vibration & Dynamic Testing

The DC-7630 Dynamic Recorder Software from Proact IMS is a powerful, high-speed data acquisition platform designed for capturing and analyzing dynamic sensor data during structural tests, vibration studies, fatigue analysis, and impact testing. Compatible with Proact DAQ hardware (e.g. TMR-300, DS-50A) and bridge-based sensors, it provides engineers with robust tools for real-time monitoring, waveform analysis, and data visualization.

Optimized for multi-channel synchronized acquisition, DC-7630 ensures accurate capture of fast-changing physical phenomena in both lab and field environments.

• Key Features
  • High-Speed Sampling – Supports sampling rates up to 100 kHz (hardware dependent)
  • Multi-Channel Support – Simultaneous recording of multiple inputs
  • Real-Time Waveform Display – Live strain, force, displacement, or acceleration curves
  • FFT & Spectrum Analysis – Built-in frequency domain tools for vibration and modal testing
  • Trigger-Based Recording – Start logging on event, threshold, or manual trigger
  • Data Export & Reporting – Save datasets in CSV, Excel, binary formats for further analysis
  • Customizable Layout – User-configurable channel views, graph scaling, and units
• Technical Specifications

  Specification	Details
  Supported Sensors	Strain gauges, load cells, LVDTs, accelerometers, pressure sensors
  Bridge Configuration	Quarter, half, full bridge
  Max Channels	Hardware dependent (e.g. 50+ channels)
  Sampling Rate	Up to 100 kHz (depends on DAQ hardware)
  File Export	CSV, TXT, Excel, proprietary binary
  Compatible OS	Windows 10 / 11
  Data Processing	Waveform, FFT, trend graph, peak hold

• Applications

  Structural Dynamic Testing

  • Measure vibration, impact strain, and dynamic load on bridges, towers, and dams

  Automotive & Aerospace Testing

  • Capture suspension dynamics, crash event data, and modal behavior

   Industrial Vibration Monitoring

  • Analyze machine tool vibration, bearing health, and rotating equipment stress

   R&D & Material Fatigue Testing

  • Study material behavior under dynamic load cycles


System Integration

• Seamlessly connects to Proact DAQ systems (TMR-300, DS-50A)
• Compatible with LabVIEW, MATLAB, SCADA, and custom automation platforms
• Data outputs suitable for post-processing, modeling, and reporting

 Why Choose DC-7630 Dynamic Recorder Software?

• Reliable capture of fast, transient events
• Integrated waveform analysis and FFT tools
• Supports complex, multi-sensor test setups
• Flexible output formats for engineering post-processing
• Backed by Proact IMS technical support, training, and integration assistance
