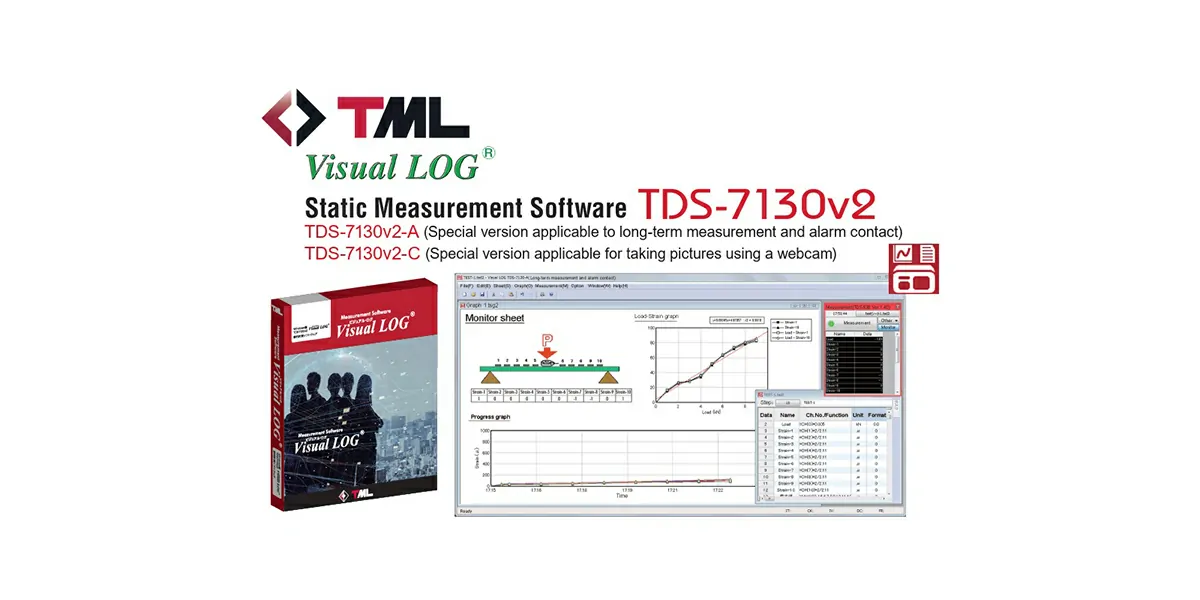

TDS-7130v2 Static Measurement Software

TDS-7130V2 Static Measurement Software

Advanced Software for Static Strain, Load, and Structural Data Acquisition

Proact IMS offers the TDS-7130V2 Static Measurement Software, a powerful and user-friendly solution for capturing, visualizing, and analyzing static measurements from a wide range of sensors. Designed for use in structural health monitoring, component testing, and material research, TDS-7130V2 integrates seamlessly with Proact DAQ hardware and compatible instrumentation for reliable, high-accuracy static data logging.

This software is optimized for strain gauges, load cells, pressure sensors, and other bridge-type transducers, providing intuitive setup and professional-grade output for both lab and

• Key Features
  • Multi-Channel Acquisition – Manage multiple sensor inputs simultaneously
  • Flexible Sensor Configuration – Supports quarter, half, and full bridge circuits
  • User-Friendly Interface – Easy channel setup, calibration, and zeroing
  • Real-Time Graphing – Live data display in numeric and chart formats
  • Data Logging & Export – Save datasets for offline analysis (CSV, Excel formats)
  • Customizable Display Units – Configure units (με, N, kgf, etc.) for each channel
  • Alarm & Threshold Setting – Set limits with audible/visual alerts
  • Report Generation – Automated test reports with graphs and key stats
• Technical Specifications

  Specification	Details
  Supported Sensors	Strain gauges, load cells, pressure cells, displacement transducers
  Input Configurations	Quarter, half, full bridge
  Channels	Supports multi-channel systems (depends on hardware)
  Sampling Rate	Optimized for static measurement (e.g. 1 Hz typical)
  Output File Types	CSV, TXT, Excel
  OS Compatibility	Windows 10 / 11
  Languages	English (other options configurable)

• Applications

  Civil & Structural Monitoring

  • Bridge, tunnel, and dam static strain/load tracking

  Material & Component Testing


  • Static deformation studies, creep tests, and load-displacement loggingF

  Automotive & Aerospace Testing


  • Frame stress and structure static load monitoring

   Industrial Equipment Checks

  • Press, jig, and fixture load/strain validation

System Integration

• Works seamlessly with TMR-300, DS-50A, and other Proact DAQ hardware
• Supports data synchronization with external loggers or PLCs
• Data export compatible with MATLAB, LabVIEW, SCADA platforms

 Why Choose TDS-7130V2 Static Measurement Software?

• Robust performance for precision static data logging
• Intuitive interface reduces setup and training time
• Flexible sensor configurations for diverse test setups
• Supports professional reporting and data traceability
• Backed by Proact IMS with integration support and updates
