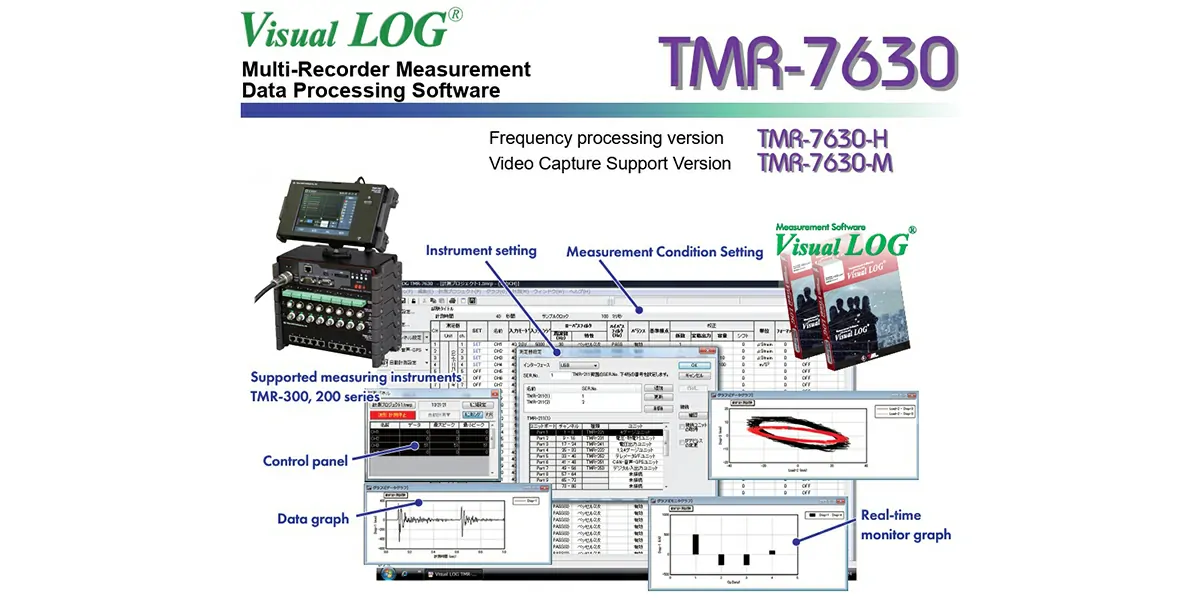

TMR-7630 Software for TMR Series

TMR-7630 Software for TMR Series

Dynamic Data Acquisition & Analysis Software for High-Speed Multi-Channel Measurements

Proact IMS offers the TMR-7630 Software, purpose-built for use with the TMR Series DAQ systems, providing engineers and researchers with a powerful platform for high-speed dynamic measurement, real-time waveform monitoring, and multi-channel synchronized recording.

Ideal for structural health monitoring, vibration testing, impact studies, and automotive or aerospace R&D, TMR-7630 enables precise data collection and visualization from strain gauges, load cells, accelerometers, LVDTs, and other dynamic sensors.

• Key Features
  • High-Speed Data Capture – Supports sampling rates up to 100 kHz per channel (hardware dependent)
  • Multi-Channel Synchronized Recording – Handles large channel counts with precise time alignment
  • Real-Time Waveform Display – Live numeric and graphical views of dynamic data
  • Trigger & Event-Based Logging – Record on load peaks, threshold crossing, or external trigger
  • FFT & Frequency Analysis – Built-in tools for modal, NVH, and vibration frequency studies
  • Custom Units & Scaling – Configure engineering units (με, N, kgf, mm) per channel
  • Data Export & Report Generation – Save data in CSV, Excel, binary, or proprietary formats for post-analysis
• Technical Specifications

  Specification	Details
  Supported Sensors	Strain gauges, load cells, accelerometers, displacement transducers
  Bridge Configurations	Quarter, half, full bridge
  Max Channels	Configurable (based on TMR system)
  Sampling Rate	Up to 100 kHz (hardware dependent)
  File Output Formats	CSV, TXT, Excel, binary
  Operating System	Windows 10 / 11
  Data Processing Functions	Waveform plotting, FFT, peak hold, statistical summary

• Applications

  Civil & Structural Testing

  • Dynamic strain, vibration, and deflection measurement in bridges, dams, towers

  Automotive & Aerospace Development

  • Suspension dynamics, crash testing, and modal analysis

  Industrial Machinery Monitoring

  • Vibration profiling, machine tool dynamic analysis, rotating equipment stress

  Material R&D & Fatigue Testing

  • Capture and analyze high-speed strain/load data during cyclic loading


System Integration

• Fully compatible with TMR-300, TMR-310, and other TMR series modules
• Interfaces with LabVIEW, MATLAB, SCADA, and custom test platforms
• Real-time data streaming for integration into automation systems

Why Choose TMR-7630 Software?

• Purpose-built for TMR series DAQ hardware
• Precision capture of dynamic events and fast transients
• Intuitive interface with advanced analysis tools (FFT, waveform comparison)
• Flexible data export for engineering reports and simulations
• Supported by Proact IMS technical team for configuration, training, and lifecycle updates
