Dynamic Strainmeters Digital type

Dynamic Strainmeters Digital type

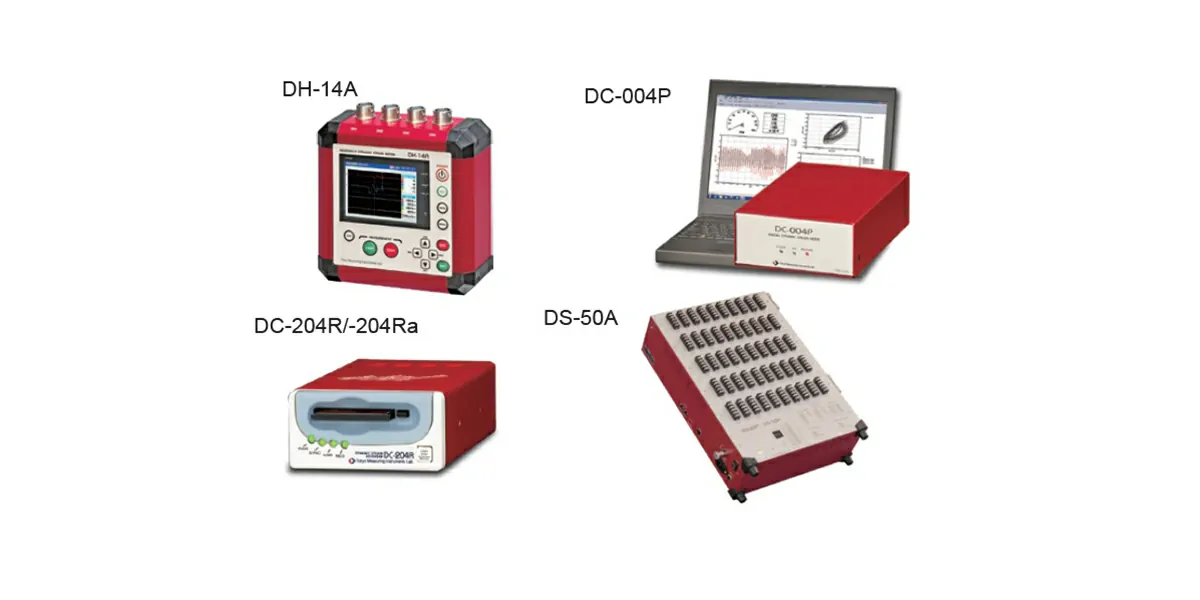

Multi-channel Dynamic Strainmeter DS-50A

Cable-connecting up to 20 units, 50 channels per unit, allows simultaneous sampling measurement of up to 1000 channels. Capable of measuring 100-Hz occurrences at a fastest sampling of 1 kHz. Allows cable connection between devices of as much as 100 m, for wide-area, multi-channel dynamic strain measurement not possible with conventional dynamic strain measuring instruments.

Smart Dynamic Strain Recorder DC-204R / DC-204Ra

• 200-kHz high-speed sampling possible in 1-channel mode — connect 8 units at the same time for simultaneous sampling of up to 32 channels.
• The DC-204Ra has analog output (±5 V) function for external recorder or automotive ECU.START/STOP button on front allows start of measurement by trigger setting, external trigger, control by external start/stop signal, etc.

PC control Dynamic Strainmeter DC-004P

The DC-004P is a PC control type dynamic strainmeter. It stores measured data in a PC which is connected via USB interface, without having a recording medium in the strainmeter. Since a continuous recording is possible, this strainmeter is most suited to measurement such as material testing.

Handheld Dynamic Strainmeter DH-14A

The DH-14A is a handheld and battery-operated dynamic strainmeter having 4 measurement channels. Dynamic strain is easily measured while monitoring numerical values and wave forms. Trigger measurement mode and free-run measurement mode are available. The DH-14A is well suited not only for measurement in fieldwork or on moving object, but also for checking sensors and input noise as a checker. Using 4 AA alkaline batteries commercially available, the meter allows measurement for 4 consecutive hours (or for 6 hours in power saving mode).

• Features For Multi-channel Dynamic Strainmeter DS-50A
  • Simultaneous measurement of 20 sets (1,000 channels) is available at the maximum.
  • 1 kHz sampling at the fastest when 1 set is used.
  • Accommodates mixed strain and voltage units
  • Comes standard with measurement software
• Features For Smart Dynamic Strain Recorder DC-204R / DC-204Ra
  • 4-channel configuration with miniature size like postcard
  • 200 kHz sampling (at the fastest in 1-channel mode)
  • Simultaneous 50 kHz sampling for 4 channels
  • Capable of measuring a large strain of up to 80000 x 10-6 strain (with 0.5 V excitation)
  • Data recording in compact flash card of 2 Gbyte capacity
  • Automatic data protection against power failure. When the power is droped unexpectedly, stops measurement and
  • stores data before turning off the power.
  • Data format conforms to DADiSP format
  • External start / stop and external trigger
  • Sensor open-circuit check function
  • USB Interface installed and standard control software supplied
• Features For PC control Dynamic Strainmeter DC-004P
  • Manual trigger, data trigger and Interval trigger can be executed at the same time
  • 50 kHz sampling (at the fastest in 1-channel mode)
  • Simultaneous sampling of 12.5 kHz for 4 channels (4-channel type)
  • Capable of measuring a large strain of up to 80000×10-6 strain (with 0.5 V excitation)
  • Direct recording on a PC
  • Supporting long term measurement
  • 4-channel type and 2-channel type are supportable
  • Measured data conforms to DADiSP format
  • TEDS compatible
  • Control software (DC-7004P) supplied as a standard accessory
• Features For Handheld Dynamic Strainmeter DH-14A
  • Simultaneous sampling of 4 channels
  • Measured data indicated by waveform
  • ECO mode (power saving mode) equipped
  • Powered by 4 AA alkaline batteries
  • Measured data conforms to DADiSP format
  • TEDS compatible
