Multi-Recorder Control Unit(TMR-300 Series)

Multi-Recorder Control Unit(TMR-300 Series)

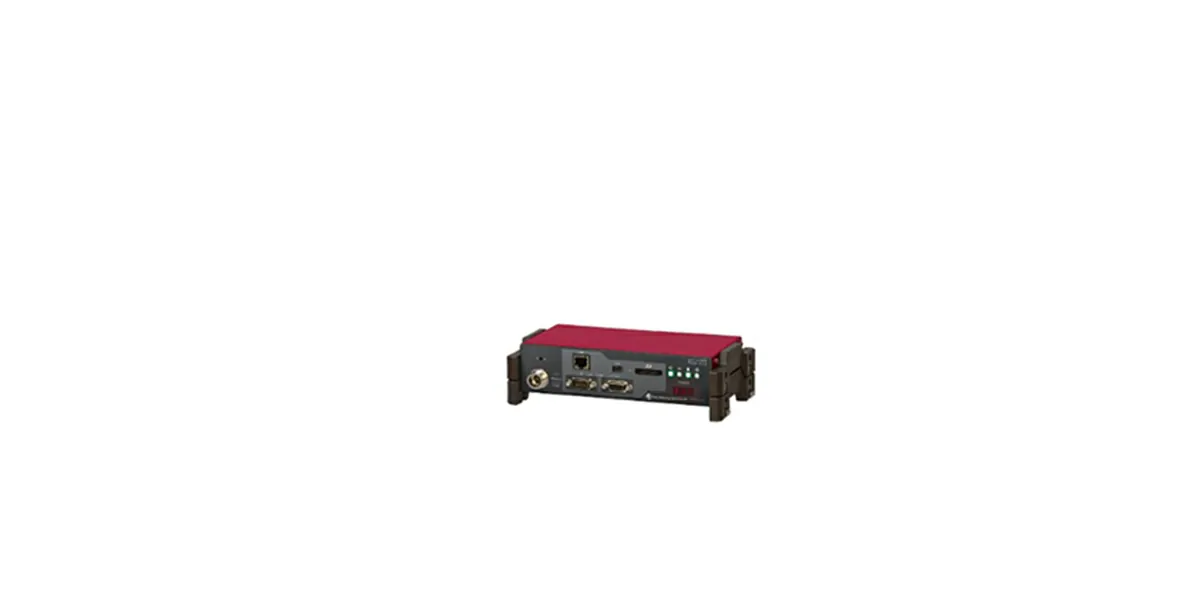

Control unit TMR-311

This works as the central unit of multi-recorder system. It controls, supplies power to and collects data from the connected measurement units. Up to ten measurement units can be controlled for measurement of 80 points at maximum.

Frequency processing library TMR-311-01 (optional)

• This is an optional frequency processing library for the TMR-300 series of multi-recorders.
  It realizes a histogram recording system that digitally processes measurement data according to a preset program and records them as frequency counts.
• Six frequency analysis methods are available: maximum and minimum value method (PEAK/VALLEY), maximum and minimum value method (MAX/MIN), amplitude method (AMP), time method (TIME), level crossing method (LEVEL), and rain flow method (RAIN).

• Features
  • Up to 80 analyses can be performed in low-speed mode with a sampling interval of 1 ms or more
  • Multiple analysis methods can be set up for the same channel
