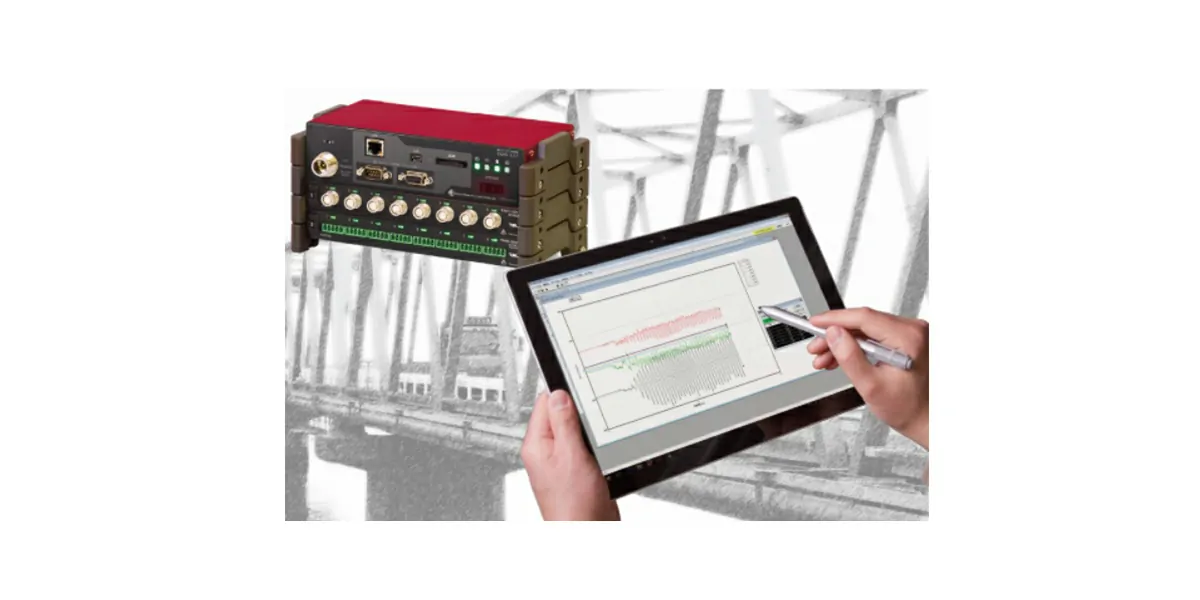

Multi-Recorder Measurement Unit(TMR-300 Series)

Multi-Recorder Measurement Unit(TMR-300 Series)

Strain Full Bridge Unit TMR-321

This unit is for measurement of strain in full bridge connection. Measurement of DC voltage is also possible by using optional attenuator cable (CR-4010).

Strain 1G2G4G unit TMR-322

This unit is for measurement of strain. Using the supplied detachable bridge box (SB-120T or SB-350T; selected when ordering) or terminal block, measurement in quarter bridge 3-wire, half bridge and full bridge connection is possible.

Carrier type strain unit TMR-323

This unit is for measurement of strain in full bridge connection with carrier wave bridge excitation, which is resistant to noise. It is the most suitable for the measurement on site where induction noise or commercial power noise is expected.

Voltage Input Unit TMR-331

This unit is for measurement of DC voltage within the range of ±52 V.

Thermocouple / Voltage Unit TMR-332

This unit is for measurement of temperature with thermocouple T, K or J, and also for measurement of DC voltage within ±20 V. Since the terminal blocks for connection are detachable from the unit main body, connection works can be made easily.

Voltage output Unit TMR-341

Conversion and output of data in analog voltage for strain, temperature, etc. measured by other units

CAN Unit TMR-351

Built-in CAN interface enables data recording and output from CAN bus
Simultaneous measurement of vehicle integrated control signals, acceleration, torque, and stress, enabling control system analysis.

Digital Input/Output Unit TMR-353

Count and frequency conversion functionality for digital pulse signal from rotary encoder and/or speed sensor Various kind of digital input/output signal is available necessary for measurement Trigger signal (start measuring) input, sampling clock input/output and alarm signal (upper and lower limit setting) output

GPS Unit TMR-354

This unit is a component of the “Automobile Related Measurement System” and records driving position information from the Global Positioning System (GPS).

Charge Amplifier Unit TMR-361

Higher frequency response and higher operable temperature range Compatible for piezoelectric accelerometers

Synchronization Unit TMR-372

• The TMR-372 synchronization unit enables synchronous measurement of the TMR-300 series and TMR-200 series.
• In combination with the TMR-211 control unit, up to four units can be used for sampling and trigger synchronous measurement.F
