Multi-Recorder Distribution Unit / Distribution Adaptor(TMR-300 Series)

Multi-Recorder Distribution Unit / Distribution Adaptor(TMR-300 Series)

Distribution unit TMR-371

This is an interface unit to enable distributed connection of measurement units. Up to ten measurement units can be arranged in star-type connection using STP cable (100 m at maximum).

Distribution adaptor TMR-371-1

This adapter is connected to each measurement unit. The STP cable coming from the TMR-371 is connected to this adapter. Since the power is supplied from the control unit TMR-311, no power supply is required at the site of measurement.

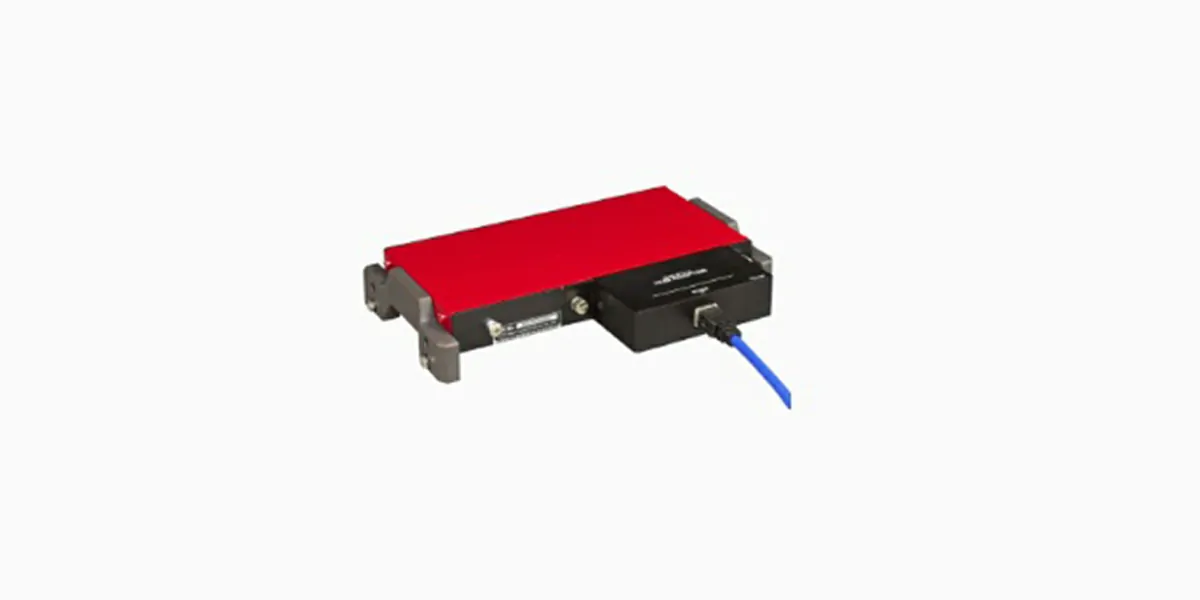

Example of connection to measurement unit

This adapter is mounted on the rear side of the measurement unit for use. It is connected to the distribution unit TMR-371 using STP cable (100 m at maximum). Since the sensor output is digitized in the vicinity of the sensor and transferred beyond, stable measurement is possible and the sensor cable is saved.
