Displacement Transducers Accessories
Displacement Transducers Accessories

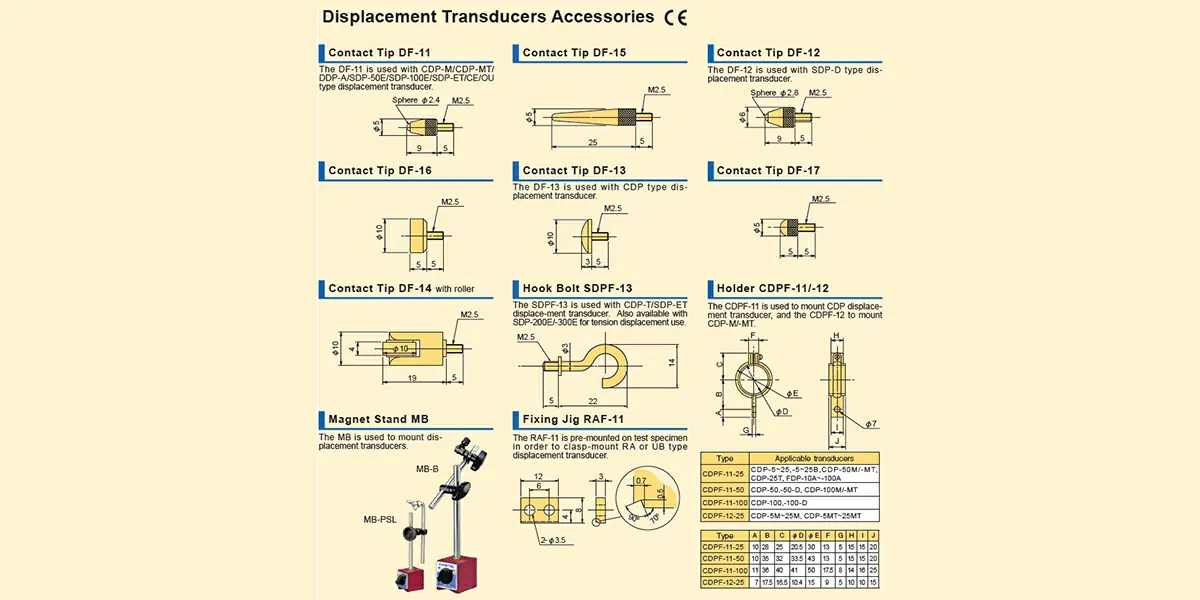

DISPLACEMENT TRANSDUCERS ACCESSORIES
Contact Tip DF-11
The DF-11 is used with OU/CE/DDP-A/SDP-50E/-100E/SDP-ET type displacement transducer.
Contact Tip DF-12
The DF-12 is used with SDP-200E/-300E type displacement transducer.
Contact Tip DF-13
The DF-13 is used with CDP type displacement transducer.
Hook Bolt SDPF-13
The SDPF-13 is used with SDP-CT displacement transducer. Also available with SDP-200E/-300E for tension displacement use.
Holder CDPF-11/CDPF-12
The CDPF-11 is used to mount CDP displacement transducer, and the CDPF-12 to mount CDP-M/-MT.
| Types | Applicable transducer |
|---|---|
| CDPF-11-25 | CDP-5 25,5B to 25B,CDP-50M,CDP-50MT FDP-A |
| CDPF-11-50 | CDP-50,50-D,CDP-100M,CDP-100MT |
| CDPF-12-25 | CDP-5M to -25M,CDP-5MT to -25MT |
| Types | A | B | C | φD | φE | F | G | H |
I |
J |
|---|---|---|---|---|---|---|---|---|---|---|
| CDPF-11-25 | 10 | 28 | 25 | 20.5 | 30 | 13 | 5 | 15 | 15 | 20 |
| CDPF-11-50 | 10 | 35 | 32 | 33.5 | 43 | 13 | 5 | 15 | 15 | 20 |
| CDPF-11-100 | 11 | 36 | 40 | 41 | 50 | 17.5 | 8 | 14 | 16 | 25 |
| CDPF-12-25 | 7 | 17.5 | 16.5 | 10.4 | 15 | 9 | 5 | 10 | 10 | 15 |
Magnet Stand MB
| Types | Body (W × L × H) | Support (Dia. × L) |
|---|---|---|
| MB-B | 50×58×55mm | 12×176mm |
| MB-PSL | 30×34×35mm | 7×99mm |
Fixing Jig PIF-21
The PIF-21 is pre-mounted on the specimen surface such as concrete by bonding with adhesive. The Pl type displacement transducer is mounted on the PIF-21 jig by screwing.
| Types | Applicable transducer |
|---|---|
| PIF-21-50 | PI-2-50/PI-5-50 |
| PIF-21-100 | PI-2-100/PI-5-100 |
| PI-2-150/PI-5-150 | |
| PI-2-200/PI-5-200 | |
| PI-2-250/PI-5-250 | |
| PI-2-300/PI-5-300 |
Fixing Jig RAF-11
The RAF-11 is pre-mounted on the test specimen by bonding with adhesive. The RA / UB transducer is clasp-mounted on the RAF-11 jig.
Dummy Plate PIF-11
The PIF-11 is used to maintain the proper gauge length when mounting the PIF-21 Fixing Jig on test specimen.
| Types | Applicable transducer | A | B | C | φD |
|---|---|---|---|---|---|
| PIF-11-50 | PI-2-50/PI-5-50 | 50 | 70 | 4.1 | 8 |
| PIF-11-100 | PI-2-100/PI-5-100 | 100 | 120 | 6.1 | 12 |
| PIF-11-150 | PI-2-150/PI-5-150 | 150 | 170 | 6.1 | 12 |
| PIF-11-200 | PI-2-200/PI-5-200 | 200 | 220 | 6.1 | 12 |
| PIF-11-250 | PI-2-250/PI-5-250 | 250 | 270 | 6.1 | 12 |
| PIF-11-300 | PI-2-300/PI-5-300 | 300 | 320 | 6.1 | 12 |
