- When coating is to extend the cable kit.
- We gathered the materials I need to protect cable connections will facilitate joint work.
Instrumentation Cable
Used to extend the Civil Engineering Transducer cable.
| Types | Names | Coating diameter | 1m length |
|---|---|---|---|
| CT6-4V100 |
ø6mm 0.3mm2 4-core shielded vinyl cable |
6mm | 100m |
| CT6-4N100 |
ø6mm 0.35mm2 4-core shielded chloroprene cable |
6mm | 100m |
| CT9-4N100 |
ø9mm 0.5mm2 4-core shielded chloroprene cable |
9mm |
100m |
| CT11.5-4N100 |
ø11.5mm 0.5mm2 4-core shielded chloroprene cable |
11.5mm |
100m |
| CT9-5N100 |
ø9mm 0.3mm2 5-core shielded chloroprene cable |
9mm |
100m |
| CT11.5-4N100 |
ø11.5mm 0.5mm2 4-core shielded chloroprene cable |
11.5mm |
100m |
| CT9-5N100 |
ø9mm 0.3mm2 5-core shielded chloroprene cable |
9mm | 100m |
| CT11.5-5N100 |
ø11.5mm 0.5mm2 5-core shielded chloroprene cable |
11.5mm | 100m |

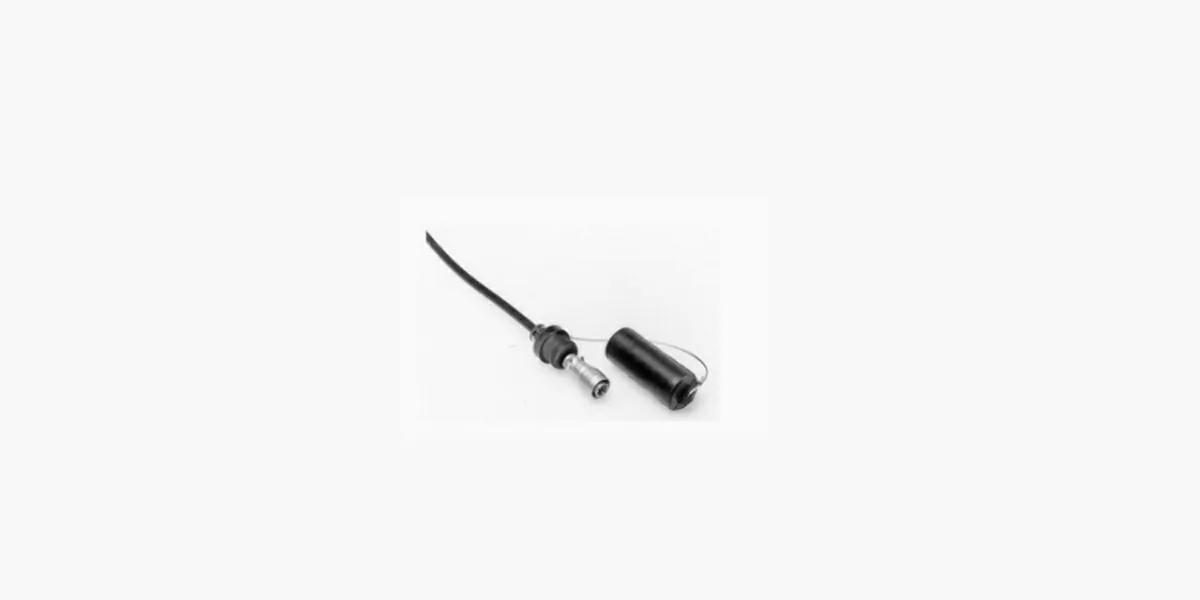

Transducers cable
| 4-core shielded chloroprene cable ø9mm 0.5mm2 |
| Types | Length | Type |
|---|---|---|
| CT9-4N0.5/NJ-STB | 0.5m | NDIS Jack to Long with loose end |
| CT9-4N10/NP-STB | 10m | NDIS Plug to Long with loose end |
| CT9-4N2/WP-NP | 2m | Waterproof plug to NDIS Plug |
| CT9-4N5/WP-NP | 5m | Waterproof plug to NDIS Plug |
| CT9-4N10/WP-NP | 10m |
Waterproof plug to NDIS Plug |
| CT9-4N20/WP-NP |
20m |
Waterproof plug to NDIS Plug |
| CT9-4N30/WP-NP |
30m |
Waterproof plug to NDIS Plug |
| CT9-4N2/WP-STB |
2m |
Waterproof plug to Long with loose end |
| CT9-4N5/WP-STB |
5m | Waterproof plug to Long with loose end |
| CT9-4N10/WP-STB |
10m |
Waterproof plug to Long with loose end |
| CT9-4N20/WP-STB |
20m |
Waterproof plug to Long with loose end |
| CT9-4N30/WP-STB |
30m |
Waterproof plug to Long with loose end |
| 2-core shielded vinyl cable φ6mm 0.5mm2 |
|---|
| Types | Length | Types |
|---|---|---|
| CT6-2R2/WP-STB | ２m | Waterproof plug to Long with loose end |
| 4-core shielded chloroprene cable φ6mm 0.35mm2 |
|---|
| Types | Length | Types |
|---|---|---|
| CT6-4N10/WJ-STB | 10m | Waterproof jack to Long with loose end |
| 4-core shielded vinyl cable φ6mm 0.3mm2 |
|---|
| Types | Length | Types |
|---|---|---|
| CT6-4V0.5/NJ-STB | 0.5m | NDIS Jack to Long with loose end |
| CT6-4V5/NJ-STB | 5m | NDIS Jack to Long with loose end |
| CT6-4V10/NJ-STB | 10m | NDIS Jack to Long with loose end |
| CT6-4V20/NJ-STB | 20m | NDIS Jack to Long with loose end |
| CT6-4V30/NJ-STB | 30m | NDIS Jack to Long with loose end |
| CT6-4V5/NJ-NP | 5m | NDIS Jack to NDIS Plug |
| CT6-4V10/NJ-NP | 10m | NDIS Jack to NDIS Plug |
| CT6-4V20/NJ-NP | 20m | NDIS Jack to NDIS Plug |
| CT6-4V30/NJ-NP | 30m | NDIS Jack to NDIS Plug |
| CT6-4V5/NP-STB | 5m | NDIS plug to Long with loose end |
| CT6-4V10/NP-STB | 10m | NDIS plug to Long with loose end |
| CT6-4V10/NP-NP | 10m | NDIS plug to NDIS plug |
| CT6-4V3/SNP-STB | 3m | Special plug to Long with loose end |
| 4-core shielded fluorinated resin (FEP) cable φ4mm 0.08mm2 |
|---|
| Types | Length | Types |
|---|---|---|
| CT4-4F5/SNP-STB | 5m | Special plug to Long with loose end |
