Load Cell Accessories

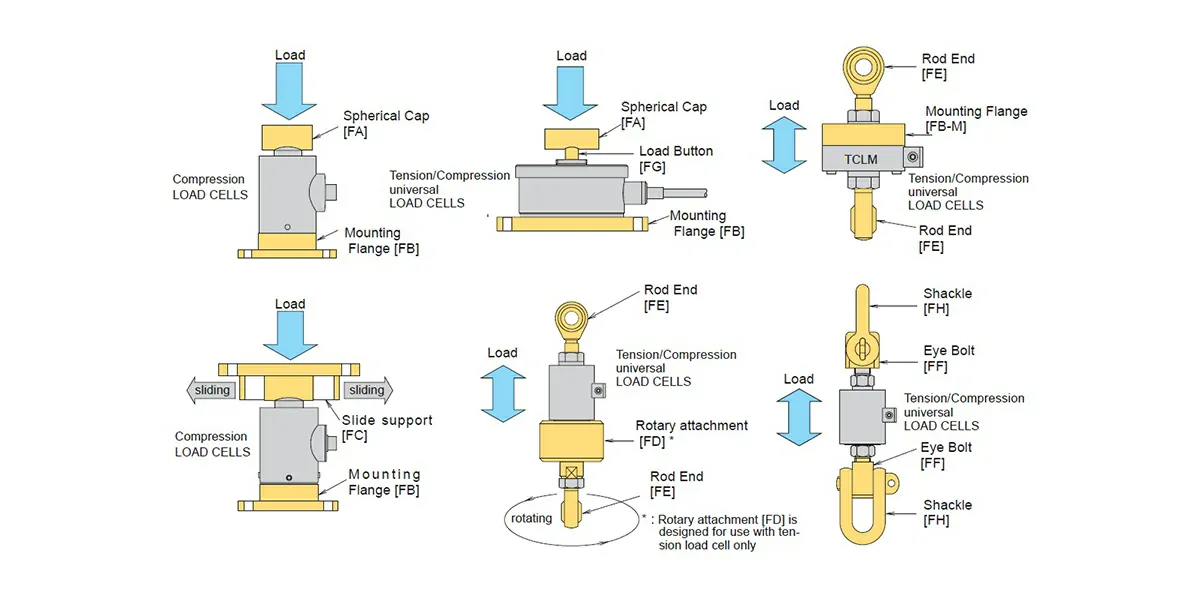

LOAD CELL ACCESSORIES FA SPHERICAL CAP

The FA Spherical Cap is mounted to the top of a compression load cell for accurate transmission of compression loads.

FB-M MOUNTING FLANGE

The FB-M Mounting Flange is used to mount Rod Ends and Eye Bolts to TCLM-NB type load cells.

FB MOUNTING FLANGE

The FB Mounting Flange is used when the mounting area for a compression load cell is unstable or when load cells can not be secured from the bottom.

FC SLIDE SUPPORT

The FC Slide Support can be used to eliminate lateral loads from compression load cells for high precision measurements.

FD ROTARY ATTACHMENT

The FD Rotary Attachment ensures smooth load transmission by eliminating torsion during tension load measurements.

FE ROD END

The FE Rod End is ideal when a tension/compression universal load cell is used to measure tension loads on machinery and structures.

FF EYE BOLT

The FF Eye Bolt is used when tension/compression universal load cells are used to measure tension. It can be used with FH Shackle.

FG LOAD BUTTON

The FG Load Button is used when tension/compression universal load cells are used to measure compression.

FH SHACKLE

The FH Shackle is used with tension load cells in instances such as measuring wire tension.
