Settlement Transducer Common-use Accessories
KLA-A/NKLA-B Common-use Accessories

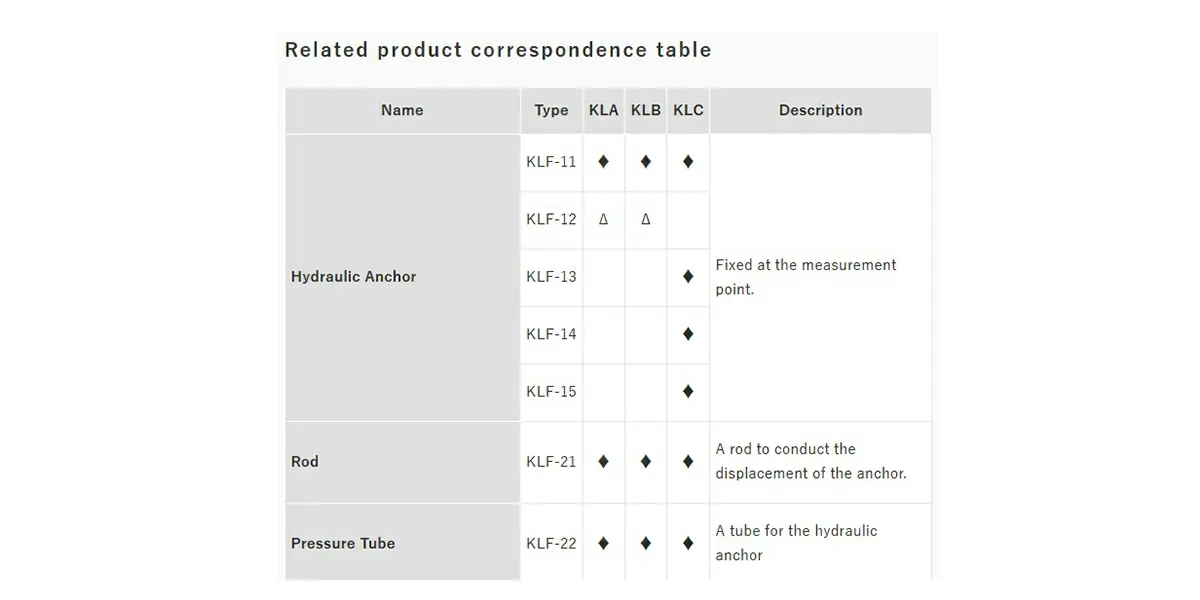

Related product correspondence table
| Name | Type | KLA | KLB | KLC | Description |
|---|---|---|---|---|---|
|
Hydraulic Anchor |
KLF-11 | ♦ | ♦ | ♦ | Fixed at the measurement point. |
| KLF-12 | Δ | Δ | |||
| KLF-13 | ♦ | ||||
| KLF-14 | ♦ | ||||
| KLF-15 | ♦ | ||||
| Rod | KLF-21 | ♦ | ♦ | ♦ | A rod to conduct the displacement of the anchor. |
| Pressure Tube | KLF-23 | ♦ | ♦ | ♦ | A tube for the hydraulic anchor |
| Pump | KLF-23 | ♦ | ♦ | ♦ | A pump applying water pressure to the hydraulic anchor |
| Rod fixing jig | KLF-24 | ♦ | Δ | Used for fixing the rod to the settlement transducer | |
| Rod tensioning jig | KLF-25 | ♦ | Δ | Used for preventing looseness of rod during curing of grout | |
| Coupler | KLF-26 | ♦ | ♦ | ♦ | A jig for connecting the pump and pressure tube |
| Grout filling hose | KLF-27 | Δ | A hose for filling grout | ||
| Exhaust hose | KLF-28 | Δ | A hose for allowing air in a hole to escape when filling with grout | ||
| Mounting bracket | KLF-29 | ♦ | Used when inserting a multi-layer settlement gauge , anchor, and rod in a hole | ||
| Release wire | KLF-30 | ♦ | Used to release a stopper that was put in place where measuring started | ||
| Displacement adjustment wire | KLF-31 | ♦ |
* ♦:Always necessary for measurement Δ:To be used depending on conditions
