Bolt Strain Gauge

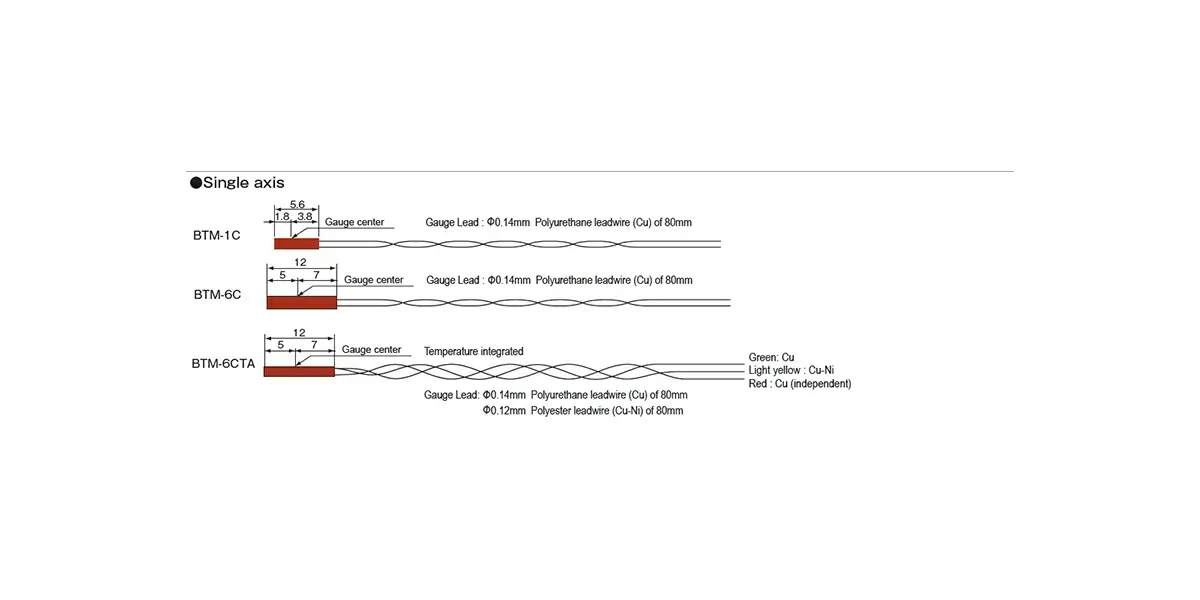

Bolt strain gauge series BTM/BTMC
These gauges are used for measurement of tensile strain of bolt. They are simply inserted into pre-drilled hole in the bolt with exclusive adhesives. This method is recommendable when an ordinary strain gauges can not be mounted on the bolt surface. Accurate tensile force measurement is possible by calibrating the bolt after installing the bolt gauges.
-
Technical Specifications
Specification Details Applicable specimen Bolt M10 or larger Operational temperature -10 to +80℃ Applicable adhesive A-2 Backing Special plastics Element Cu-Ni
