| Specification | Details |
|---|---|
| Applicable specimen | Metal, Ceramics |
| Operational temperature | -269 to +80℃ |
| Temperature compensation range | -196 to +80℃ |
| Applicable adhesive | EA-2A, CN, C-1 |
| Backing | Special plastics |
| Element | Special alloy foil |
| Strain limit | 1% (10000 x 10-6 strain) |
| Fatigue life at room temperature | 1 x 106 (±1500 x 10-6 strain) |
- Enquiry To - sales@proact-ims.com
Cryogenic temperature use strain gauge
Cryogenic temperature use strain gauge

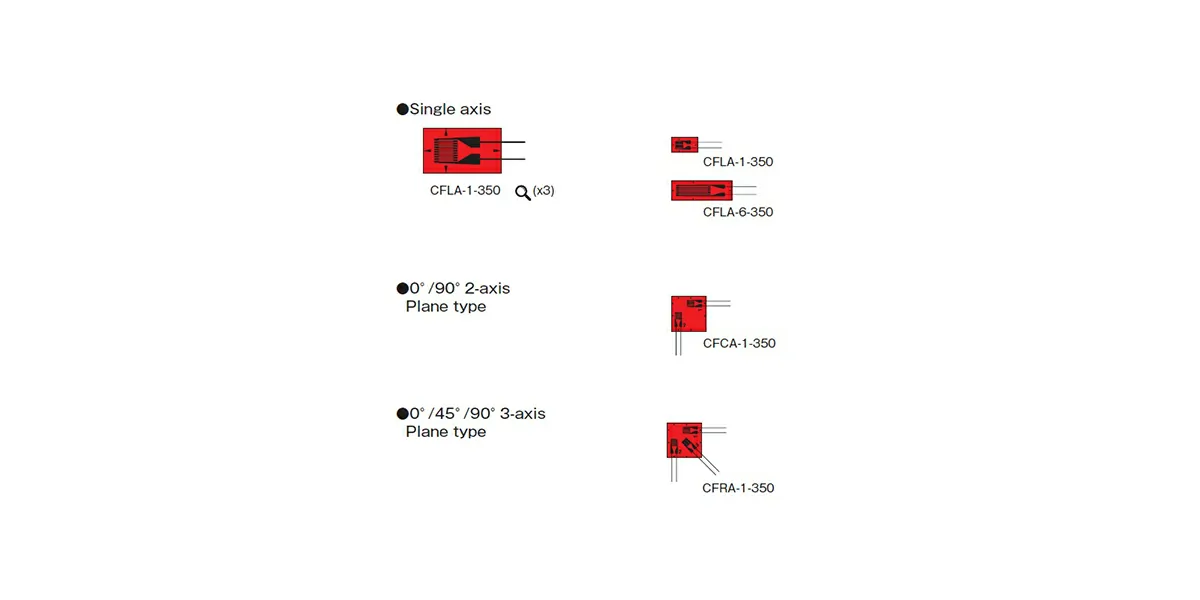

CF series Cryogenic temperature use strain gauge
CF series cryogenic temperature strain gauges utilize a special plastic for the backing and a special alloy for the element. They allow stable measurement from normal temperature to the cryogenic temperature range. The temperature compensation range is an approximate range.
-
Technical Specifications
