Crack Detection Gauge
FAC series Crack detection gauge

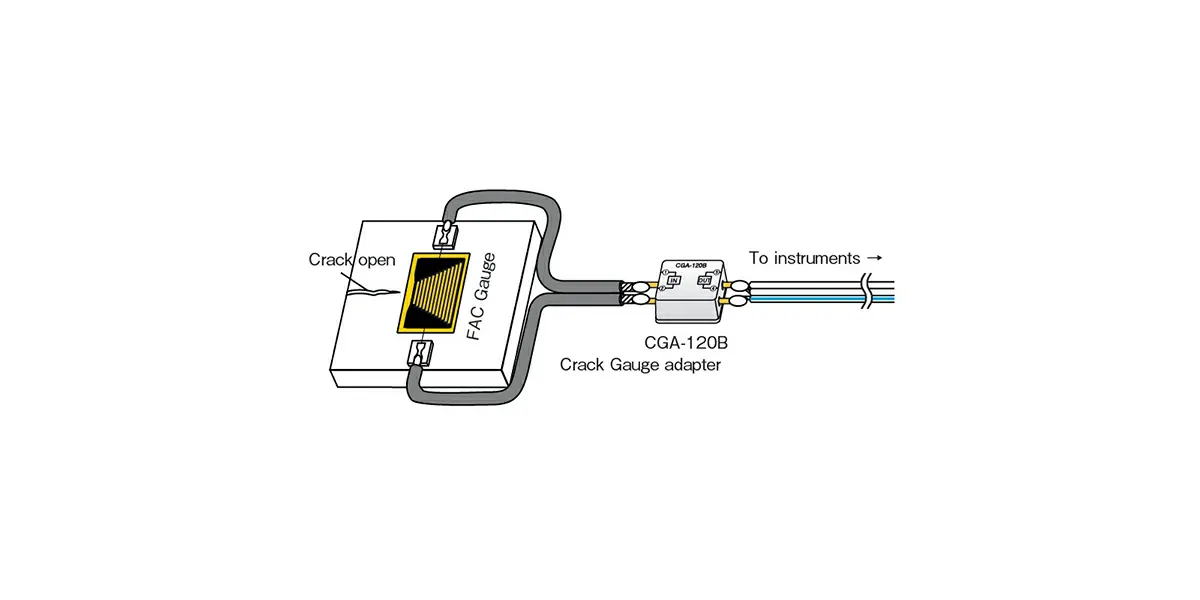

FAC series crack detection gauges are designed to measure the length and propagation speed of cracks occurring as a result of metal fatigue in machinery, ships, aircraft, and automobiles. A gauge is adhered beforehand where cracks have occurred or are predicted to occur. As a crack progresses, the grid lines separate one after another, and output value changes. Use together with the special adaptor CGA-120B.
-
Technical Specifications
Specification Details Applicable specimen Metal, Concrete Operational temperature(℃) -30 to +80℃ Temperature compensation range RT to +300℃ Applicable adhesive CN, RP-2 Backing Special plastics Element Cu-Ni
