Temperature Integrated Strain Gauges

These are temperature-integrated strain gauges having our unique thermocouple added. F series and almost all other foil strain gauges can be fitted with this capability. The temperature contact is a tab on the strain gauge, and displays the same temperature as the strain gauge. This can be measured with any of our data loggers.
Data loggers applicable to the measurement of these gauges are TDS-540/-530/-303/-300/-630/-602/ -601A/-601/-102/-101R and TC-32K/-31K. Measurement using a dynamic strainmeter is not possible.

For Enquiry

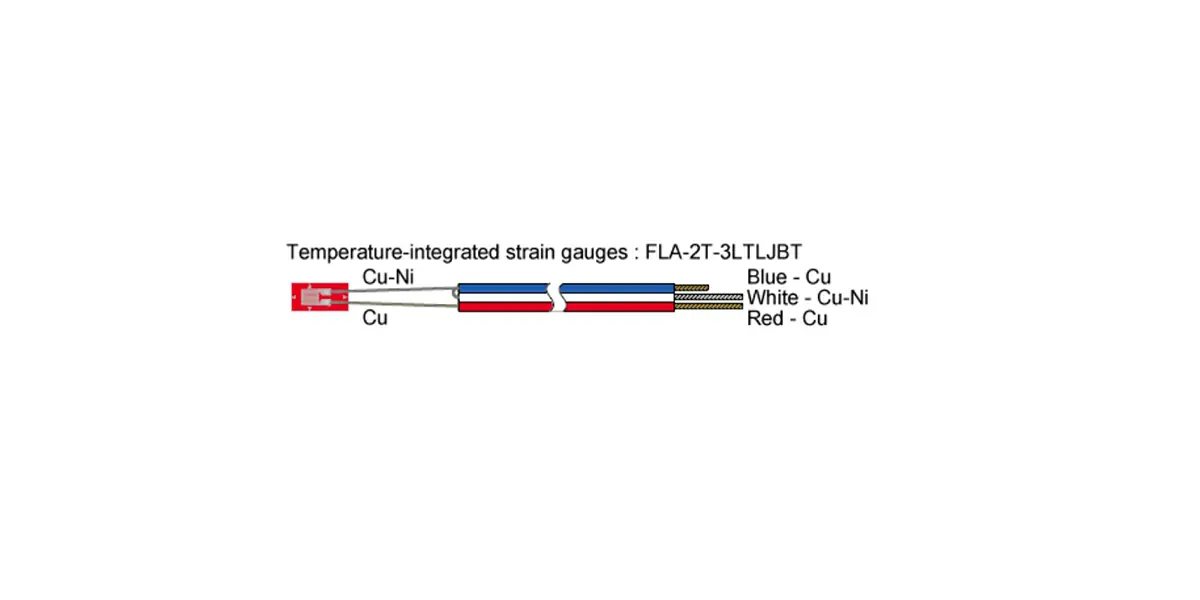

Temperature-integrated strain gauges
