Weldable Strain Gauges
Field-Ready Strain Gauges for Harsh and Unprepared Surfaces
Weldable strain gauges from Proact IMS are engineered for environments where traditional adhesive bonding is either unreliable or impractical. These gauges can be spot-welded directly to metallic surfaces, making them ideal for outdoor, corrosive, and high-vibration applications such as bridges, pipelines, mining equipment, and heavy machinery.
Built with rugged stainless-steel carriers, hermetically sealed elements, and strain-relieved cabling, these sensors are designed for long-term monitoring, even under extreme mechanical and environmental stress.
Key Features
- No adhesive required – attached via weld tabs using standard resistance or arc welding
- Resistant to moisture, oil, dust, and vibration
- Available in linear, biaxial, and rosette configurations
- Backed with stainless steel or Inconel for mechanical robustness
- Can be installed on rough, unclean, or painted surfaces with minimal prep
- Suitable for both temporary and permanent installations
-
Applications
Bridge & Infrastructure Monitoring
- Welded onto steel girders, piers, and suspension components
- Long-term stress tracking and fatigue analysis
Oil & Gas Pipelines
- Mounted on risers, joints, and above-ground pipeline sections
- Used in conjunction with wireless DAQ systems in hazardous zones
Heavy Construction & Mining Equipment
- Structural stress monitoring on cranes, earthmovers, and rigs
- Monitors deformation in dynamic, high-load environments
Railway and Transit Systems
- Applied on axles, rails, bogies, and structural weld zones
- Real-time strain alerts for predictive maintenance
-

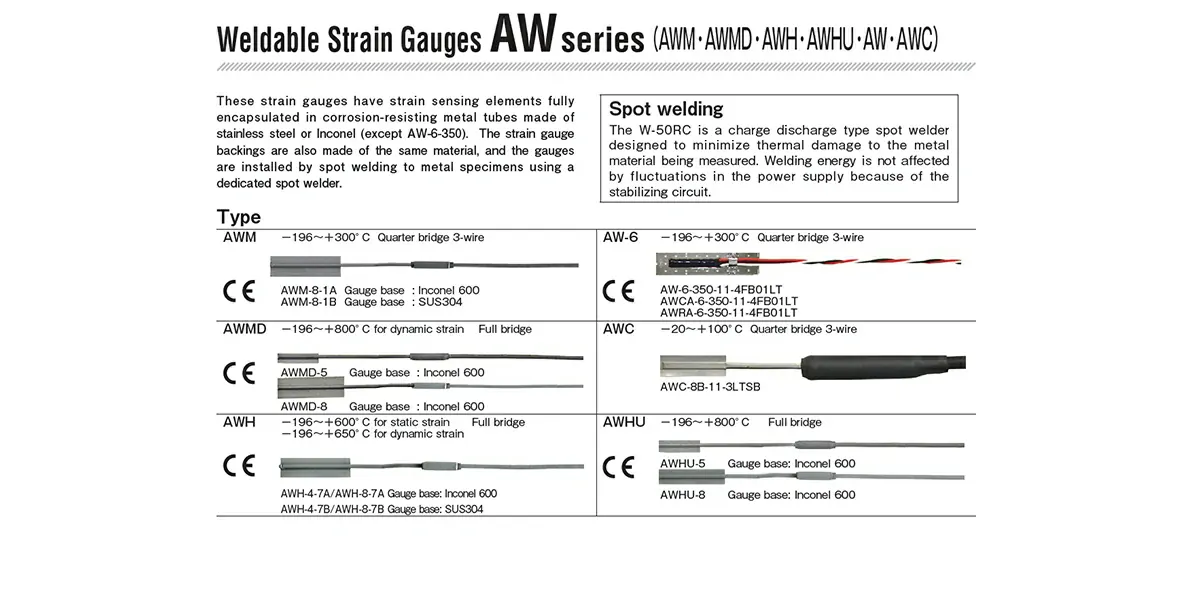

Product Configurations
- Resistance values: 120Ω, 350Ω (custom available)
- Available in quarter-bridge, half-bridge, and full-bridge formats
- Integrated with strain-relieved lead wires and rugged connectors
- Compatible with Wheatstone bridge circuits, DAQ systems, and SCADA
-
Accessories & Integration
Welding kits and electrode recommendations available
Supports real-time monitoring via NI DAQ, LabVIEW, and custom SCADA
Optional protective coatings for marine or chemical exposure
Can be bundled with load cells, temperature sensors, and displacement gauges
Why Choose Proact IMS Weldable Strain Gauges?
- Ideal for field installation in remote or difficult-to-access locations
- Reliable under thermal cycling, high pressure, and UV exposure
- Designed for durability, accuracy, and minimal maintenance
- Trusted by infrastructure operators, oil & gas firms, and EPC contractors
- Full support for selection, installation, data acquisition, and calibration
