| Specification | Details |
|---|---|
| Applicable specimen | Metal, Ceramics |
| Operational temperature | -269 to +200℃ |
| Temperature compensation range | -196 to +80℃ |
| Applicable adhesive | C-1, EA-2A, CN |
| Backing | Polyimide |
| Element | Special alloy foil |
| Strain limit | 5 % (50000 x 10-6 strain) |
| Fatigue life at room temperature | 1 x 106 (±1500 x 10-6 strain) |
- Enquiry To - sales@proact-ims.com
High and low temperature strain gauge
High and low temperature strain gauge

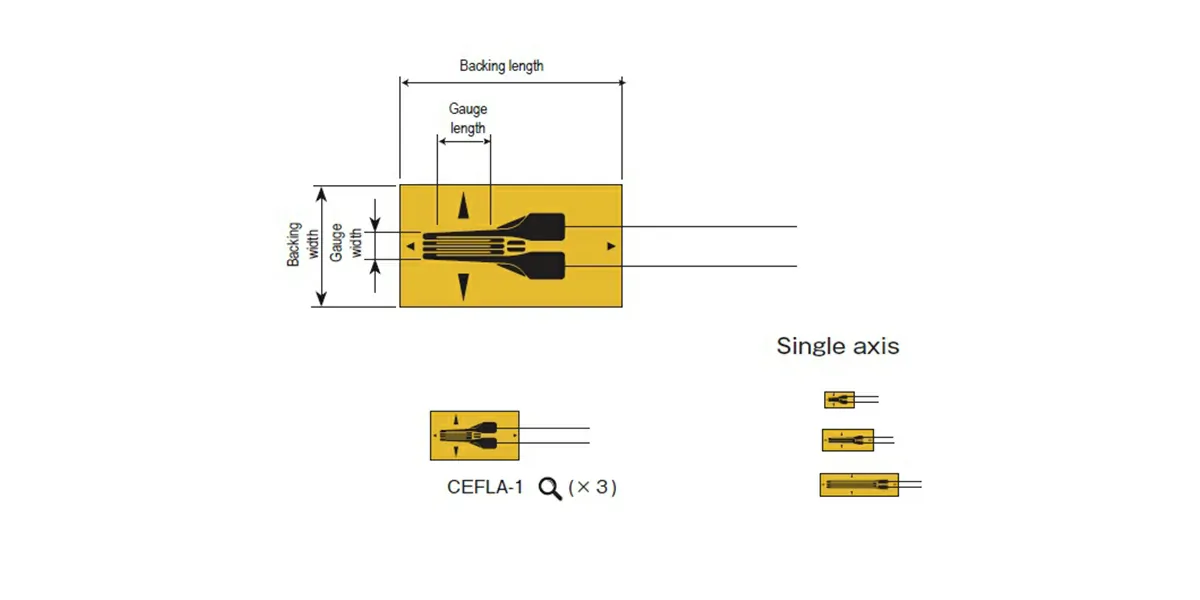

CEF series High and low temperature strain gauge
CEF series high and low temperature strain gauges utilize polyimide resin for the backing and a special alloy for the element. They feature a wide range of operating temperature from −269 to +200°C.
-
Technical Specifications
