CDP-M Small Displacement Transducer 5 to 100mm

The CDP-M is a small and high sensitive displacement transducer. Compared with conventional CDP series, its output is the same but its diameter is less by 50 - 20% than that of CDP, and its temperature range is extended up to +80°C.

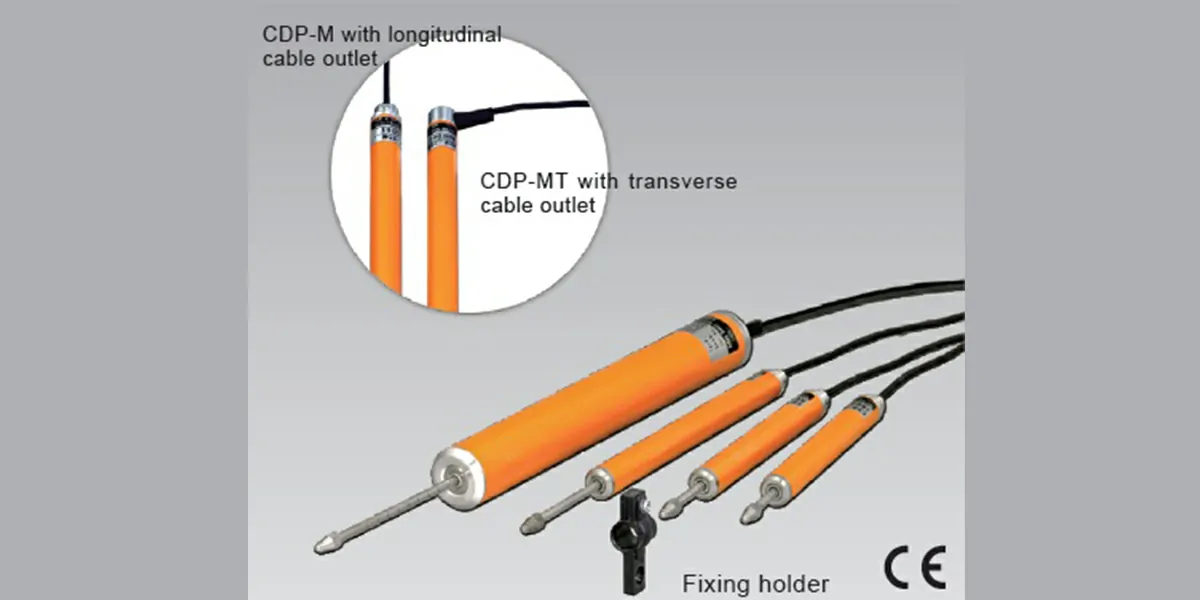

The CDP-M with cable output along the measurement axis and the CDP-MT with cable output vertical to the axis are available. The transducer can be used not only for static measurement but also for quasi-dynamic measurement.

A fixing holder is supplied as a standard accessory. Options include ordinary magnet stand MB-B and small MB-PSL specified for the CDP-M series.

• Protection rantings : IP 40 equivalent

• Features
  • Compact
  • Easy handling
  • Allowable temperature range -10 to +80℃
  • Lineup of five models: 5 / 10 / 25 / 50 / 100 mm
  • High output of 10000 x 10-6 strain or more
  • CDP-5M/-10M Only CE Marking Compliant
